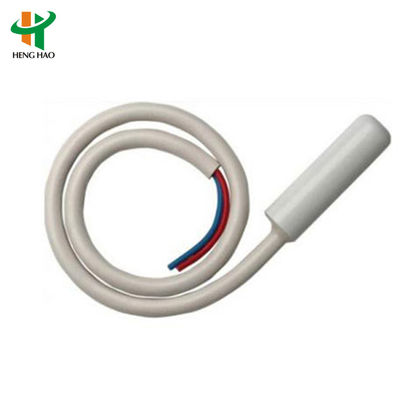

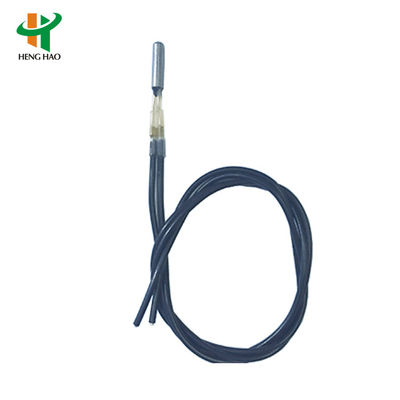

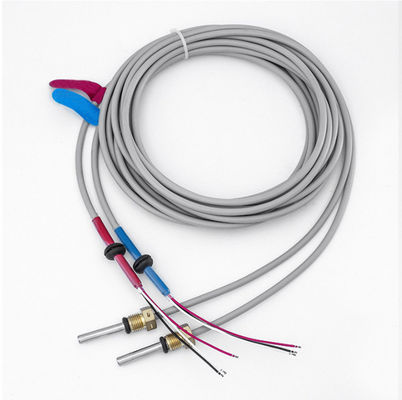

10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor

10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor
10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor
10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor 10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor 10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor 10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor 10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor 10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor 10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor

Large Image :  10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: NTC
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.5~0.6PCS
Packaging Details: 2000PCS CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Level Of Protection: IP68
Highlight:

PT100 Platinum resistor

,

10K NTC Temperature sensor

,

50K NTC Thermistor

10K PT100 Platinum Resistor 50K NTC Thermistor Sensor
High-precision temperature sensing solution with versatile configurations for industrial applications.
Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25℃±0.05℃
R25 Permissible variance (%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25℃±0.05℃ Constant temperature 85℃±0.05℃
B25/50 Value permissible variance (%) ±1, ±2 Constant temperature 25℃±0.05℃ Constant temperature 50℃±0.05℃
∫ (dissipation coefficient) ≥0.8mw/℃ Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40℃~+250℃
Pn (rated power) 50mw Within working temperature

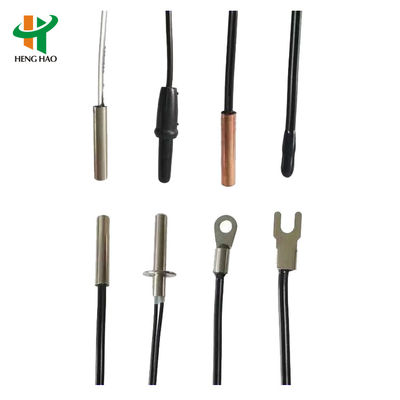

Case and head Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head Or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor Or according to client's request
Terminal Can be riveted according to requirements Various terminal configurations available
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product options available
  • Strict protection of your private information and design ideas
Frequently Asked Questions
10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor 0
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
PT100/PT500/PT1000 Temperature Sensor
Product Feature Specification
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade (0.3), 2B Grade (0.5), 1/3 B Grade (0.1)
Temperature probe size 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire options Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal Y type, Pin, XH2.54 or according to client's request
Level of protection IP68
10K PT100 Platinum Resistor 50K Ntc Thermistor Sensor 1
