SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection

SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection
SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection
SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection

Large Image :  SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection

Product Details:
Place of Origin: CHINA
Brand Name: HENHGAO
Certification: UL
Model Number: BW9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.2~0.3PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection

Description
Life Cycle: 100000 Cycles Contact Type: Voltagnormally Closed Or Normally Opene & Current
Switch Type: Auto Reset Or Manual Reset Temperature Range: 0-250℃
Case: Metal
Highlight:

ST-12 Bimetallic Thermostat

,

ST-22 Bimetallic Thermostat

,

KSD9700 Thermostat

SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 BW-ABJ
Product Overview
The SEKI ST-22 series bimetallic thermostat provides reliable over-current and over-temperature protection. Featuring a sealed design with small internal resistance, automatic reset functionality, and silent operation, it offers superior protection compared to standard thermal protectors.
SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection 0
Technical Specifications
Parameter Value
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C steps
Reset temperature 2/3 of action temperature (±15°C tolerance) or customizable
Life cycles 10,000 operations
Dimensions L15mm × W7.1mm × H3.8mm
Lead wire #22 3266, 70mm length (customizable)
Certifications UL E487478, CQC16002142880, TUV B160592241002
Model Variations

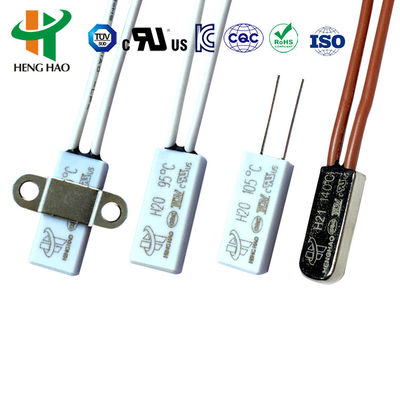

Model Case Dimensions (mm) Voltage & Current Lead Wire

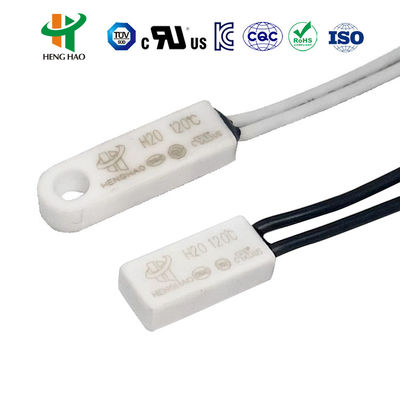

H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, 70mm length (customizable)
H21 (Metal) Metal 18.5 × 7.3 × 3.8 AC250V 20A #16 3135
BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V Multiple wire options available
Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
Applications
  • 1.5 HP motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Fluorescent lamp ballasts
  • Portable power tools
  • Various electrical appliances
Operation Principle
The thermostat contains temperature-sensitive bimetallic components that change state when exposed to over-temperature or over-current conditions. This action either opens or closes the circuit as needed. When conditions return to normal, the device automatically resets.
SEKI ST-22 ST-12 Bimetallic Thermostat KSD9700 with 0-250℃ Temperature Range Normally Closed Over-Temperature Protection 1
Certified: UL, CQC, TUV, and RoHS compliant
