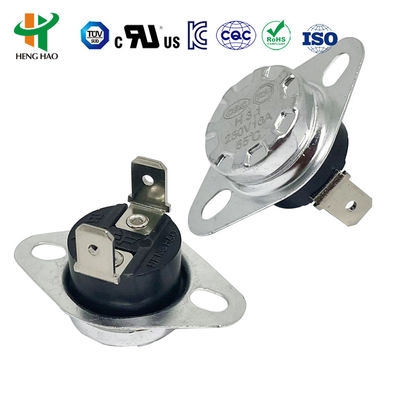

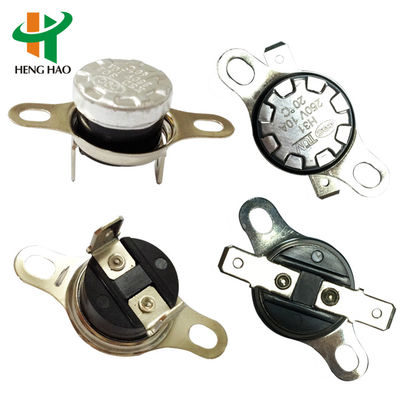

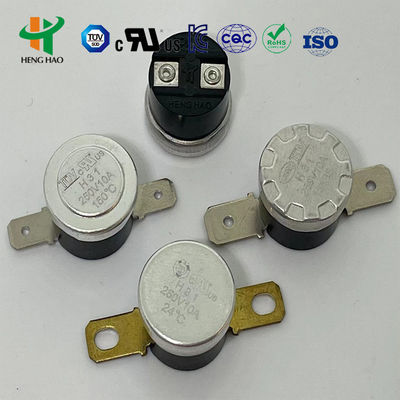

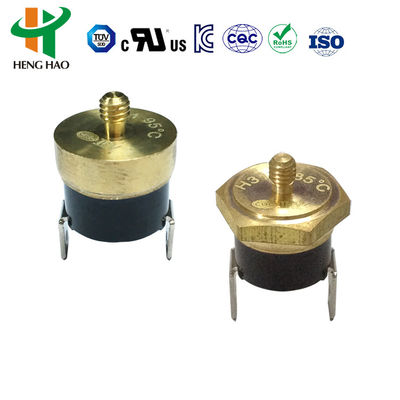

KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life

KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life
KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life
KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life

Large Image :  KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

KSD301-G Temperature Controller Thermostat

,

Temperature Controller Thermostat 250V 16A

,

KSD301 Thermostat

KSD301-G Ksd301 Temperature Controller Thermostat 250V 16A
KSD301-G Ksd301 Temperature Controller Thermostat 250V16A KSD301 Thermostat
Principle and Structure
The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
Download Product PDF KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life 0
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
House Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
Auto Reset vs Manual Reset Types
Manual Reset Type: Uses bimetallic strip temperature sensing. When temperature reaches action range, the circuit disconnects and requires manual reset button press to reconnect after temperature decreases by 20°C.
Auto Reset Type: Uses bimetallic strip temperature sensing. The circuit automatically reconnects when temperature decreases to the reset point.
Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
Note: Custom temperature settings available according to client requirements.
Certifications
Product has UL, CQC, TUV and RoHS certification approval.
KSD301 Bimetal Thermostat with 250V 16A Rating 0-250℃ Temperature Range and 100000 Cycles Life 1
