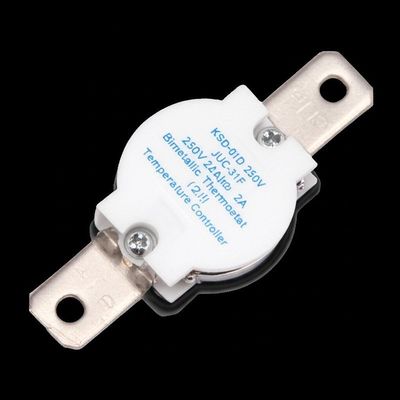

KSD-01D Bimetallic Thermostat with 0~150°C Temperature Range Bakelite Case for PCB Circuit Board Installation

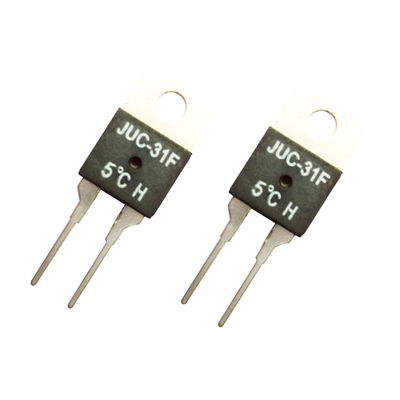

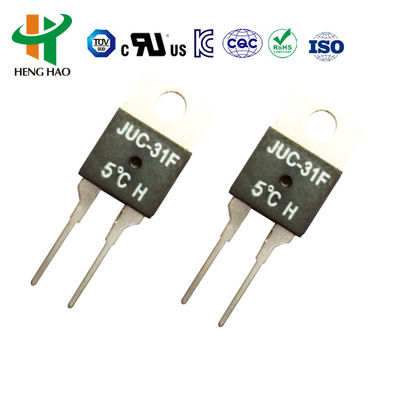

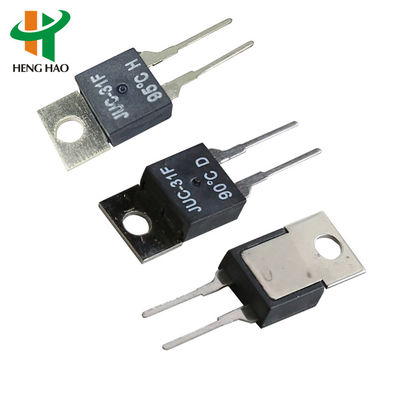

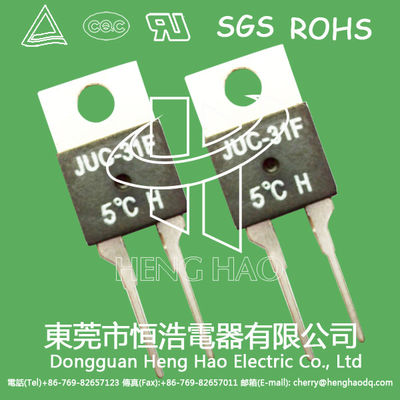

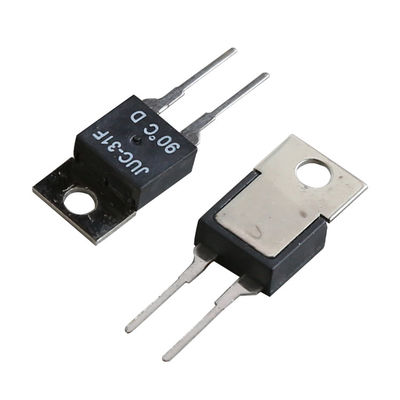

The JUC-31F thermostat is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This product offers high reliability, sensitive and accurate temperature control, compact size, lightweight design, and easy installation, making it ideal for PCB circuit boards, heat equipment, and power devices.

• Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
• Contact type: ID (closed) H (open)
• Overheating temperature: 250°C
• Contact resistance: <50mΩ
• Insulation resistance: >100 mΩ
• Dielectric withstand voltage: >1500V
• Product life: >10,000 cycles
• Weight: 1.7 g
• Action temperature deviations: ±5°C

The JUC-31F thermostat is suitable for:

• Electric equipment and products
• Household appliances
• Temperature control and protection
• Thermal overload in circuit boards
• Communication and switching power supplies
• UPS and medical power supplies
• Audio amplifier equipment
• Rechargeable devices and rectifiers
• Industrial and aerospace equipment

This product has UL, CQC, VDE and RoHS certification approval.

An alternative to KLIXON 17AM thermal protector with compact design and quick, accurate action.

• Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact life cycles: >10,000 cycles at AC-125V 15A, AC-250V 10A
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C to ±5°C
• Reset temperature: 10-45°C below trip temperature
• Working times: >10,000 cycles

17AM_XXX_A/B_5_A,B,C,D...Z

• 17AMH: Product series
• XXX: Trip off temperature in °C code
• A/B: Terminal direction (A = same, B = opposite)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type
