ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset
ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset
ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Large Image :  ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: BW-ABS
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: USD 0.15~0.3PCS
Packaging Details: 2000PCS
Delivery Time: 10~15PCS
Payment Terms: T/T
Supply Ability: 1000000PCS
Contact Now

ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Rese
Temperature Range: 50-150℃ Case: Plastic
Highlight:

Temperature Switch Thermal Protector

,

ST-22 SEKI Thermal Protector

,

KSD9700 Thermal Switch

ST-22 SEKI Thermal Protector KSD9700 Thermal Switch Temperature Switch
The KSD9700 BW-ABS Thermal Protector is a bimetallic thermostat temperature controller designed for reliable over-temperature and over-current protection. Sealed firmly with small internal resistance and no noise, it automatically resets when safe operating conditions return.
Principle and Structure
The BW & BH series protectors feature a bimetal element that responds to temperature and current changes. When abnormal conditions occur, the bimetal changes state to either cut off or restore the circuit. BH series offer enhanced safety with no temperature effect lag during sudden current surges.
ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 0
Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C (customizable)
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length 70mm (customizable)
Certifications UL E487478, CQC CQC16002142880, TUV B160592241002
BH Series Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead Wire

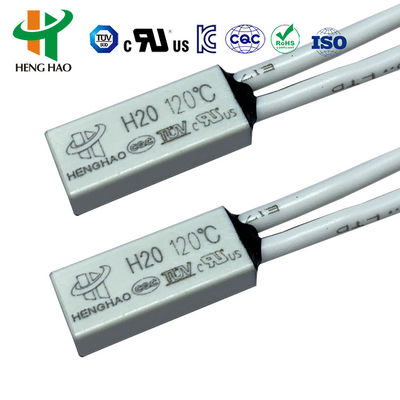

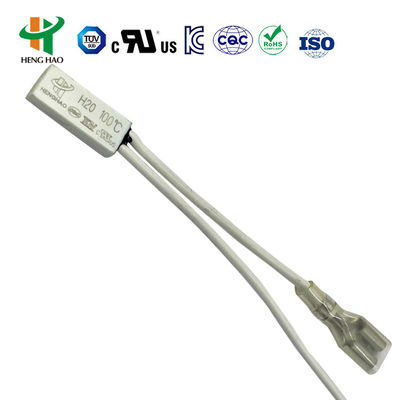

H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 7.3 3.8 AC250V 20A #16 3135

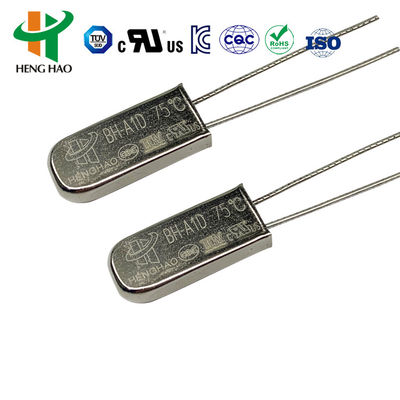

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)
Applications
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Portable power tools
  • Various electric appliances
Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 1
Additional Specifications
  • Contact Closure resistance: ≤50mΩ
  • Insulation resistance: ≥100mΩ
  • Electric strength: AC1500V/1min (no breakdown or flashover)

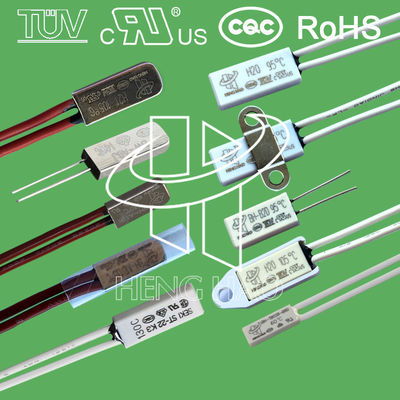

Product Images
ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 2 ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 3 ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 4 ST-22 SEKI Thermal Protector KSD9700 Thermal Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 5
Certifications: UL, CQC, TUV and RoHS compliant
