17AM Thermal Protector Temperature Controller with 50-180°C Operating Range 10000 Life Cycles for Motor Applications

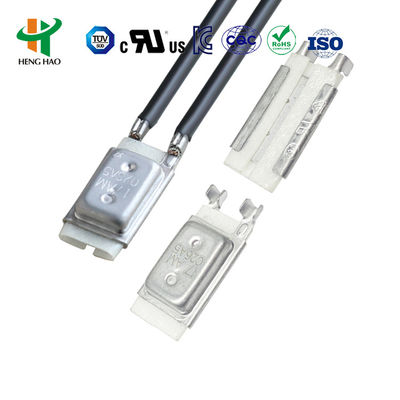

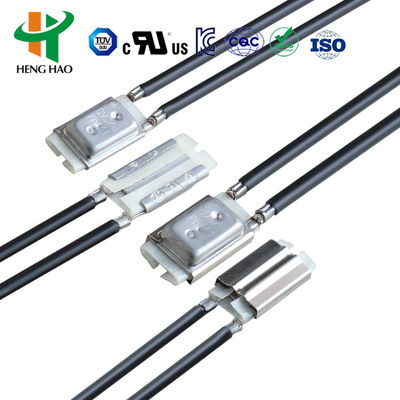

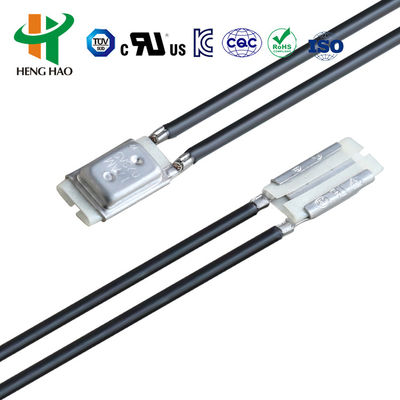

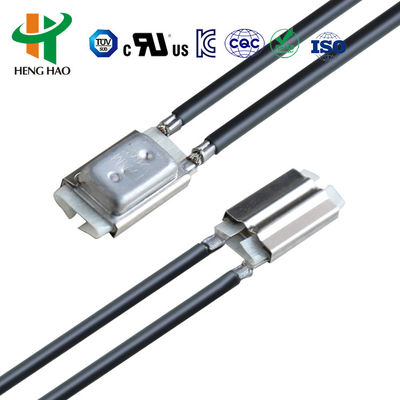

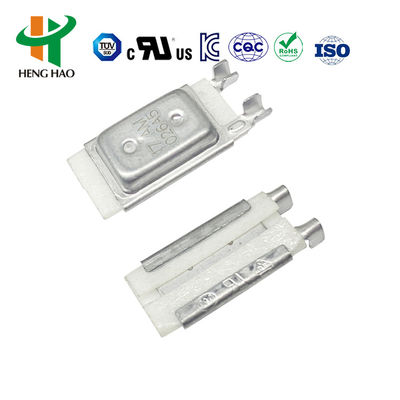

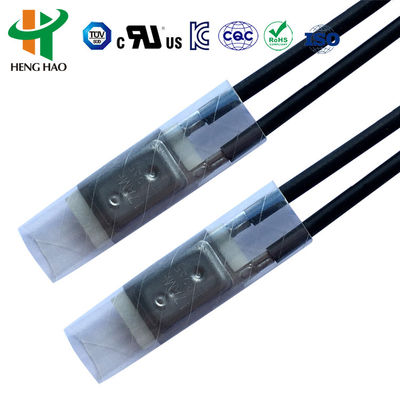

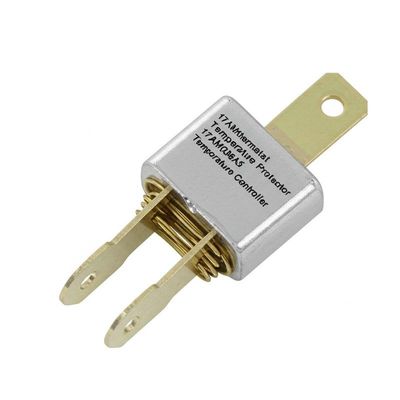

The 17AM thermostat is an excess-current thermal protector featuring compact design and quick, accurate action. It can be customized with different types of leads according to customer requirements.

• Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact Life Cycles:
  • AC-125V 15A, AC-250V 10A: >10,000 cycles
  • AC-125V 5A: >100,000 cycles
• Operating Temperature Range: 50-180°C
• Temperature Tolerance: ±2°C, ±3°C, ±5°C
• Reset Temperature: 10-45°C below trip temperature
• Working Cycles: Over 10,000 times

17AM_XXX_A/B_5_A,B,C,D...Z

• 17AMH: Product series number
• XXX: Trip temperature in °C code
• A/B: Terminal direction (A: same direction, B: opposite direction)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type

The thermal protection switch is typically installed on A/C compressor housings to prevent compressor damage from overheating caused by internal friction. It monitors compressor case temperature and interrupts the electrical circuit when a predetermined temperature threshold is reached.

The thermal protection switch safeguards against overload conditions. This is achieved through a design where a bra shaft is placed inside a brass tube. In these overload relays (also known as "solder pot relays"), the motor current passes through a small heater winding.

The 17AM temperature protector is suitable for various applications including:

• All types of motors
• Fluorescent lamp commutators
• Transformers
• Laminators
• Lighting systems
• Cover sealing machines
• Household appliances
