KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3 PER PC
Packaging Details: 1650 PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD302 Thermostat

,

KSD301 Temperature Controller

,

KSD303 Temperature Controller

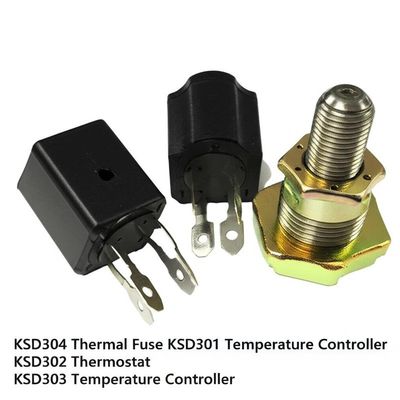

KSD304 Thermal Fuse KSD301 Temperature Controller KSD302 Thermostat KI31 KSD303 Temperature Controller
The KSD series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.

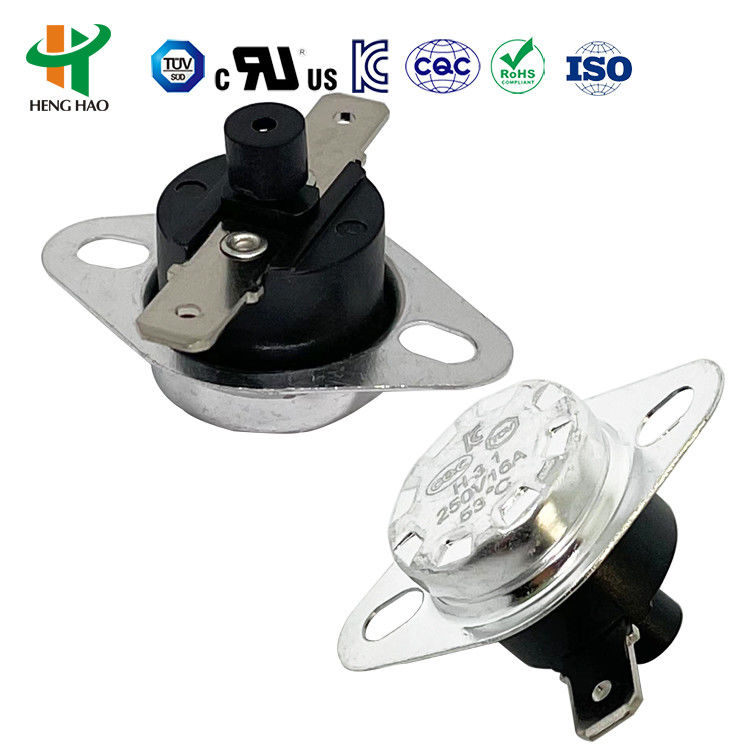

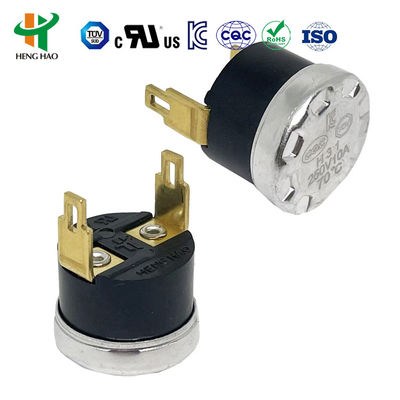

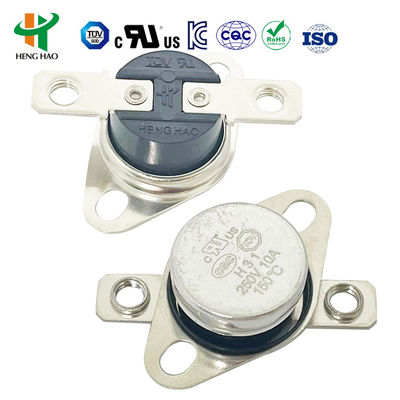

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0 KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1 KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 2
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type: Uses bimetallic strip temperature sensing. When reaching action temperature, the disc disconnects and requires manual reset via button press after temperature decreases by 20°C (4-6N force recommended). Requires minimum 20.4mm clearance between reset button and cover.
Auto Reset Type: Uses bimetallic strip temperature sensing. Automatically resets and resumes operation when temperature decreases to specified point.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Specifications
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃

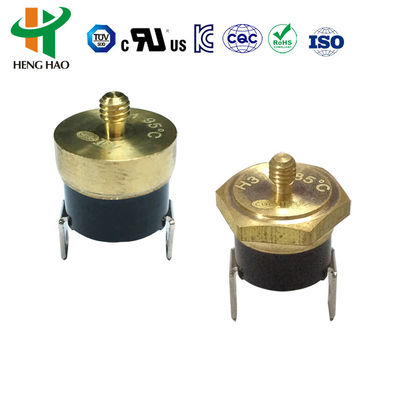

This product has UL, CQC, TUV and RoHS certification approvals. KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 3
