250V 2A Temperature Controller with 0~150°C Range Bakelite Case and Normally Closed or Open Thermal Protector

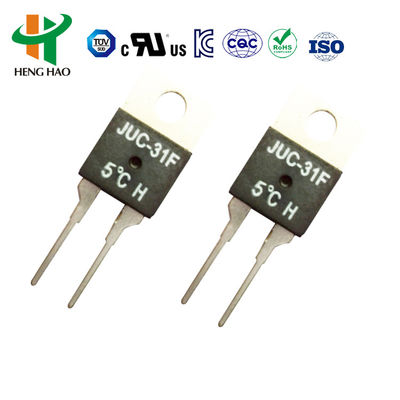

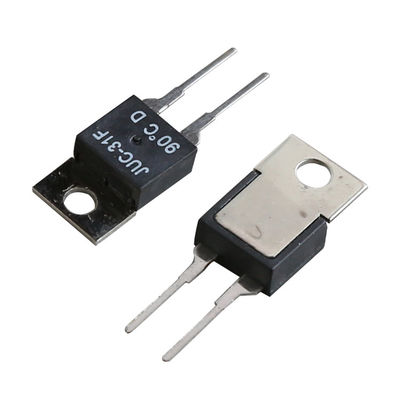

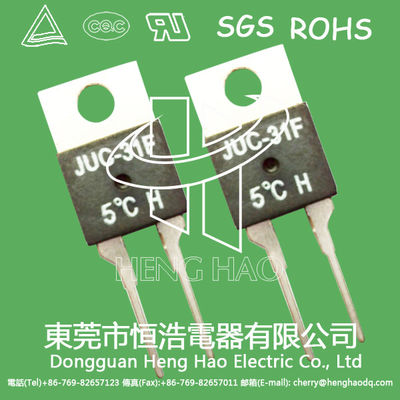

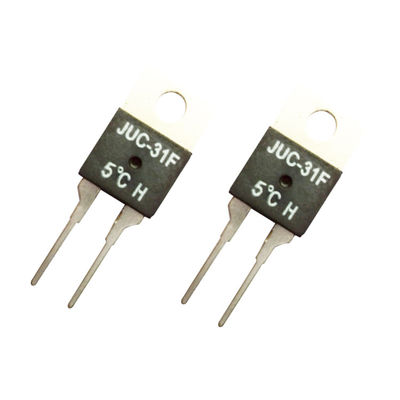

The JUC-31F thermostat is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This compact, lightweight temperature protector offers high reliability, sensitive accuracy, and easy installation for PCB circuit boards, heat equipment, and power devices.

• Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
• Contact type: ID (closed) H (open)
• Overheating temperature: 250°C
• Contact resistance: < 50mΩ
• Insulation resistance: > 100 mΩ
• Dielectric withstand voltage: > 1500V
• Product life: > 10,000 cycles
• Weight: 1.7 g
• Action temperature deviations: ±5°C

The JUC-31F thermostat provides temperature control and protection for:

• Electric equipment and household appliances
• Thermal overload protection in circuit boards
• Communication and switching power supplies
• UPS and medical power supplies
• Audio amplifier equipment
• Rechargeable devices and rectifiers
• Welding equipment and aerospace instrumentation
• Automation and military equipment

Certifications: UL, CQC, VDE and RoHS compliant.

The 17AMH is a compact excess-current thermal protector with quick, accurate action. Available with different lead configurations to meet customer requirements.

• Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact life cycles: > 10,000 cycles at rated load
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C, ±3°C, ±5°C options
• Reset temperature: 10-45°C below trip temperature
• Working cycles: Over 10,000 operations

17AMH XXX A/B 5 A,B,C,D...Z

• 17AMH: Product series
• XXX: Trip temperature in °C
• A/B: Terminal direction (A=same, B=opposite)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type
