Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection

Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection
Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection
Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection

Large Image :  Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC
Model Number: S01
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1-`0.5pcs
Packaging Details: 2000pcs /carton
Delivery Time: 10~15 workdays
Payment Terms: T/T
Supply Ability: 10000000pcs per month
Contact Now

Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

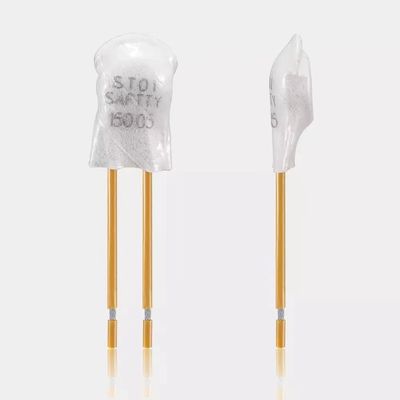

ST01 Bimetallic Thermostat

,

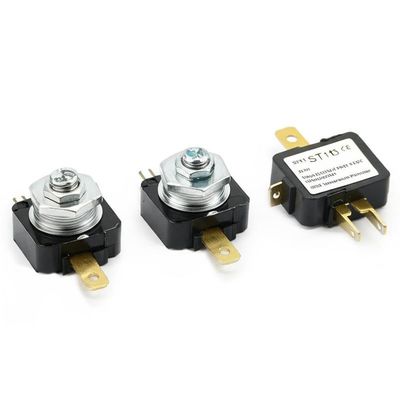

ST11 Bimetallic Thermostat

,

ST05 Bimetallic Thermostat

ST11 Thermostat ST01 Bimetallic Thermostat ST05 Temperature Protector
Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection 0

The BW & BH series thermostats provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The bimetallic components respond to both temperature and current changes, altering their state to either cut off or complete the circuit as needed for protection.

The BH series offers enhanced safety compared to standard protectors, with immediate response to sudden current surges without temperature lag.

BH Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (customizable)
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
BH Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm (customizable)
H21 Metal 18.5 7.3 3.8 AC250V 20A #16 3135
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm (customizable)
BH-B2D Plastic 15 7.1 3.8
BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm (customizable)
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
Applications

BH series thermal protectors are effective security devices used in:

  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Fluorescent lamp ballasts
  • Portable power tools
  • Various electric appliances

Enforced types (3.5MPa pressure rating) are suitable for plastic-coated motor installations.

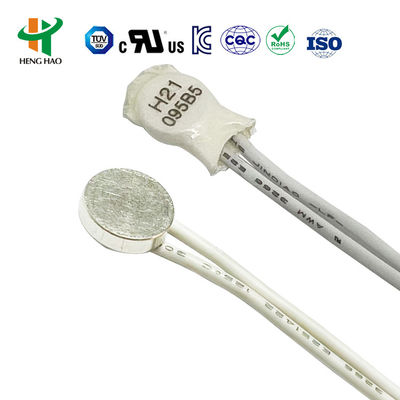

H20/H21 Series Principle and Structure

These universal protectors feature large metal casings containing bimetallic components with silver alloy contacts, conductive brackets, and insulation stands. During abnormal operation, rising temperatures cause the bimetallic components to quickly open the circuit, automatically resetting when temperatures return to safe levels.

H20/H21 Series Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C
Life times 10000 cycles
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min (no breakdown or flashover)
Bimetallic Thermostat and Thermal Protector with Normally Closed or Normally Open Contacts Auto Reset or Manual Reset Sealed Firmly for Reliable Over-Current and Over-Temperature Protection 1

All products have UL, CQC, TUV and RoHS certification approval.
