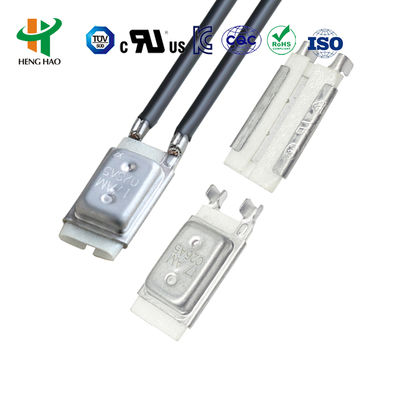

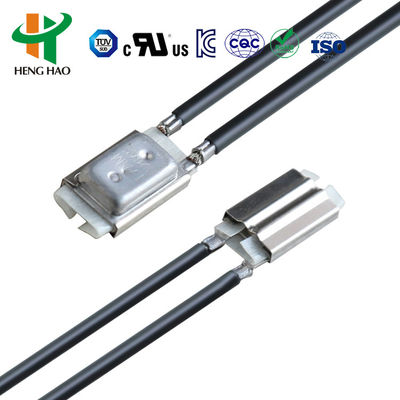

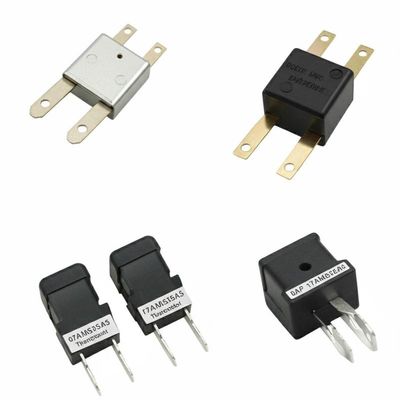

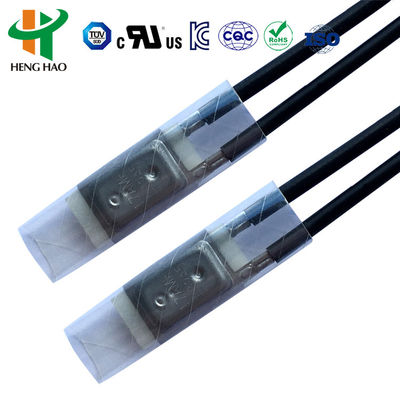

17AM Thermal Protector Temperature Controller with 0-250℃ Range Normally Closed or Open Auto or Manual Reset

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / replacement for KLIXON 17AM thermal protector

17AMH is an excess-current thermal protector with compact design, featuring quick and accurate action. Different types of leads can be riveted according to customer requirements.

• Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C±3°C±5°C
• Reset temperature: 10~45 degrees in off temperature decline
• Working times: Over 10000 times

17AMH XXX A / B 5 A,B,C,D.....Z

• 17AMH: Product series number
• XXX: Trip off temperature in °C Code
• A/B: A: Terminals in same direction / B: Terminals in opposite direction
• 5: OFF Temperature Tolerance Code
• A,B,C,D.....Z: Different types of connecting wire

17AMH thermal protector is suitable for various applications including:

• Motors
• Commutators for fluorescent lamps
• Transformers
• Laminators
• Lamps and lighting
• Cover sealing machines
• Various household appliances

The product has UL, CQC, VDE and RoHS certification approval.
