BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case

BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case
BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case
BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case

Large Image :  BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: BW-ABS
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: USD 0.15~0.3PCS
Packaging Details: 2000PCS
Delivery Time: 10~15PCS
Payment Terms: T/T
Supply Ability: 1000000PCS
Contact Now

BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Rese
Temperature Range: 50-150℃ Case: Plastic
Highlight:

BW-ABS Thermostat

,

9700K Thermostat

,

KSD9700 Thermostat

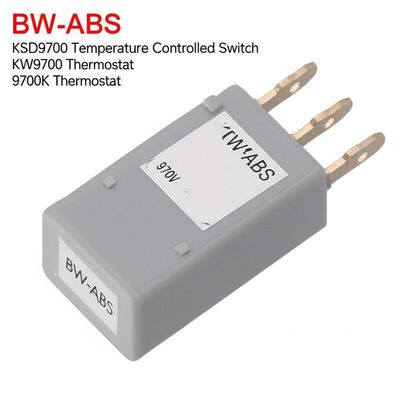

BW-ABS KSD9700 Temperature Controlled Switch KW9700 Thermostat 9700K Thermostat
BW & BH series protectors offer reliable over-current and over-temperature protection with sealed construction, small internal resistance, no noise, and automatic reset functionality. The temperature and current-sensitive bimetal changes state to cut off or switch on the circuit when detecting over-temperature or over-current conditions. BH series provides enhanced safety with no temperature effect lag during sudden current surges.
BW-ABJ Series Thermostat Specifications
Specification Details
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C steps
Reset temperature 2/3 of action temperature (±15°C tolerance) or customized
Life times 10,000 cycles
Size L15mm × W7.1mm × H3.8mm
Lead wire #22 3266, 70mm length (customizable)
Certifications UL E487478 | CQC16002142880 | TUV B160592241002
BW-ABJ Series Dimensions

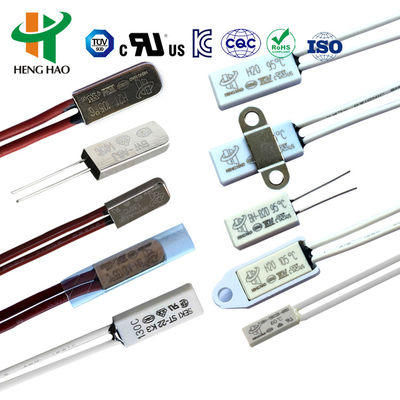

Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, 70mm (customizable)
H21 Metal 18.5 × 7.3 × 3.8 - -
H21 Metal 20 × 8 × 4 AC250V 20A #16 3135

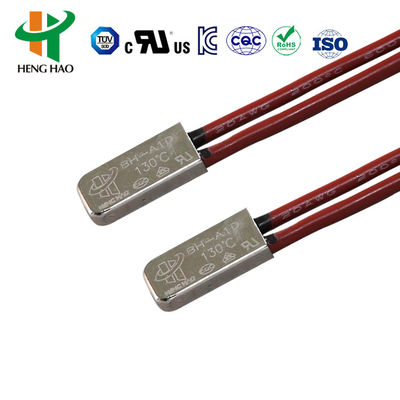

BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, 70mm (customizable)
BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case 0
BH Series Applications
BH series thermal protectors serve as reliable security devices for:
  • 1.5HP motors and lighting devices
  • Inverter welding machines and switch power supplies
  • Rechargeable battery packs and portable power tools
  • Fluorescent lamp ballasts and electric appliances
  • Plastic coated motors (3.5MPa pressure-resistant models available)
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
H20/H21 Series Specifications
Specification Details
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min (no breakdown or flashover)
BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case 1 BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case 2 BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case 3 BW-ABS KSD9700 Temperature Controlled Switch Thermostat with 50-150℃ Range Normally Closed Plastic Case 4
Certified: UL, CQC, TUV, and RoHS compliant
