KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse

KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse
KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse
KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse

Large Image :  KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV
Model Number: KSD-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD0.25~0.35
Packaging Details: 2000pcs / carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 10000000PCS per month year
Contact Now

KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse

Description
Life Cycle: 10000 Cycles Voltage & Current: 250V 2A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0~150 Case: Bakelite
Highlight:

KSD-01F Thermal Fuse

,

Bimetallic Thermostat Ksd-01f

,

JUC-31F Thermal Fuse

KSD-01F Thermostat JUC-31F Thermal Fuse - Bimetallic Thermostat

The KSD-01F thermostat (JUC-31F model) is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This highly reliable component offers sensitive and accurate temperature control with compact dimensions and lightweight construction for easy installation.

JUC-31F Thermostat Principle and Structure

Ideal for PCB circuit boards, heat equipment, and power device installations, this thermostat provides precise temperature monitoring and protection.

JUC-31F Technical Specifications
Parameter Specification
Contact Load AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
Contact Type ID (closed) / H (open)
Temperature Range 0-130°C with ±3-5°C accuracy
Overheating Temperature 250°C
Contact Resistance <50mΩ
Insulation Resistance >100mΩ
Dielectric Withstand Voltage >1500V
Product Life >10,000 cycles
Weight 1.7g
Temperature Operation Details
Operating Temp (°C) Recovery Temp (°C) Error Testing Method
0-99 5-35 ±3°C 1°C/min
100-130 7-40 ±5°C 1°C/min
Applications

The JUC-31F thermostat provides reliable temperature control and protection for:

  • Electric equipment and household appliances
  • Circuit board thermal overload protection
  • Communication and switching power supplies
  • UPS and medical power supplies
  • Audio amplifier equipment
  • Rechargeable devices and rectifiers
  • Welding equipment and aerospace instrumentation
  • Military and commercial temperature control applications
Product Images

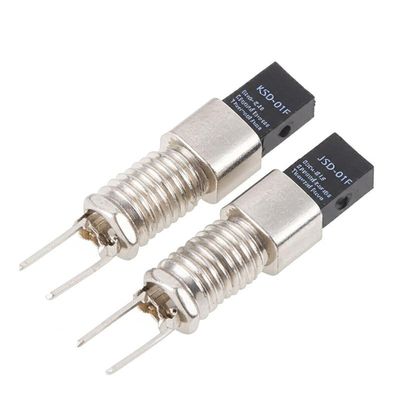

KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse 0
KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse 1
KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse 2
KSD-01F Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Normally Open Auto Reset or Manual Reset Thermal Fuse 3

Certifications: UL, CQC, VDE, and RoHS compliant. Learn more about our thermostat products.

17AMH Thermal Protector - Alternative to KLIXON 17AM
17AMH Thermostat Principle and Structure

This excess-current thermal protector features compact design and quick, accurate action. Custom lead configurations available to meet specific requirements.

17AMH Technical Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact Life: 10,000+ cycles at rated load
  • Operating Temperature: 50-180°C (±2-5°C tolerance)
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 operations
Product Coding System

17AM_XXX_A/B_5_A,B,C,D...Z

  • 17AMH: Product series
  • XXX: Trip temperature in °C
  • A/B: Terminal orientation (A=same direction, B=opposite direction)
  • 5: OFF temperature tolerance code
  • A-Z: Connecting wire type
