Bi Metal Thermostat with 0~150°C Temperature Range and Bakelite Case for PCB Circuit Board Installation

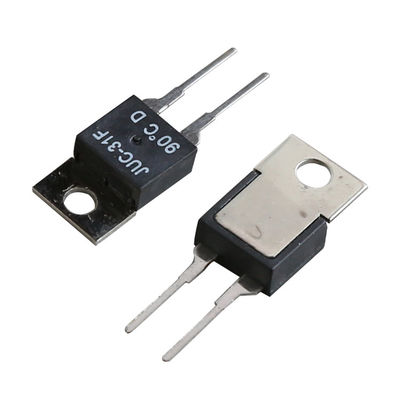

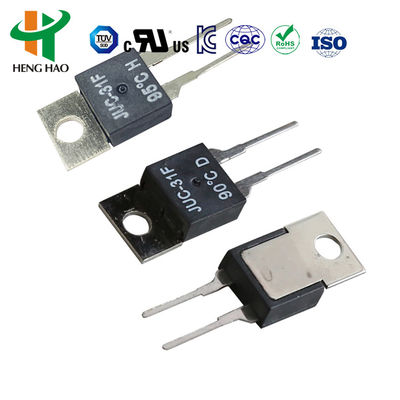

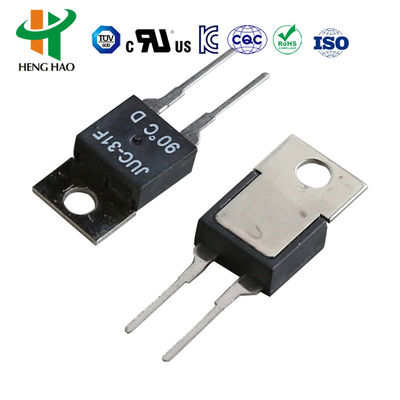

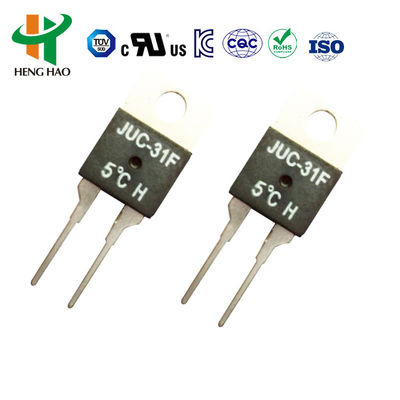

The JUC-31F thermostat is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This compact and reliable temperature controller offers sensitive and accurate performance with easy installation, making it ideal for PCB circuit boards, heat equipment, and power devices.

• High reliability and precision temperature control
• Compact size and lightweight (1.7g)
• Simple installation process

The JUC-31F thermostat is widely used in:

• Electric equipment and household appliances
• Thermal overload protection in circuit boards
• Power supplies (communication, switching, UPS, medical, fire)
• Audio amplifier equipment and rechargeable devices
• Rectifiers, inverters, and welding equipment
• Aerospace instrumentation and automation equipment
• Military and commercial temperature control applications

This product holds UL, CQC, VDE and RoHS certifications, ensuring quality and safety standards.

The 17AMH is an excess-current thermal protector with compact design and quick, accurate action. Custom lead configurations are available to meet specific requirements.

• Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact Life: >10,000 cycles (AC-125V 15A, AC-250V 10A), >100,000 cycles (AC-125V 5A)
• Operating Temperature: 50-180°C
• Temperature Tolerance: ±2°C, ±3°C, ±5°C
• Reset Temperature: 10-45°C below trip temperature

17AMH XXX A/B 5 A,B,C,D...Z

• 17AMH: Product series
• XXX: Trip temperature in °C
• A/B: Terminal direction (A=same, B=opposite)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type
