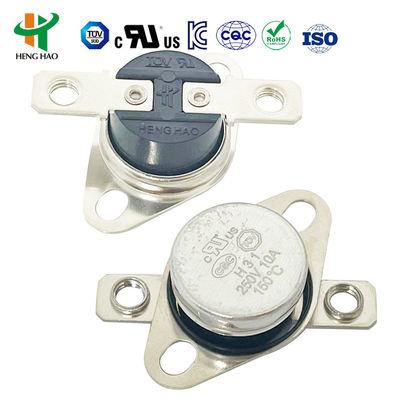

KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

All Products

KSD Bimetal Thermostat

(123)

KSD301 Bimetal Thermostat

(274)

Thermal Protection Switch

(221)

KSD302 Thermostat

(17)

KSD Thermal Switch

(29)

NTC Thermistor Temperature Sensor

(137)

17AM Thermal Protector

(66)

Thermal Cutoff Switch

(16)

Thermal Overload Protector Switch

(68)

Temperature Control Switch

(9)

Thermal Protector Fuse

(6)

Mini Thermal Switch

(25)

SEKI Thermal Protector

(5)
Best Products
M10 Copper Head Temperature Switch

M10 Copper Head Temperature Switch

KSD301 Bimetallic Thermal Switch

KSD301 Bimetallic Thermal Switch

250V KSD Bimetal Thermostat

250V KSD Bimetal Thermostat

Certification
China Dongguan Heng Hao Electric Co., Ltd certification
China Dongguan Heng Hao Electric Co., Ltd certification
Customer Reviews
Very nice to have a such a good friend and business partner. Hope we could make a more bright future in our business trip.

—— Yassine Ramitec

well-made, easy to install

—— Saber Ali

I'm Online Chat Now

KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3PER,PC
Packaging Details: 1650PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ,T/T
Supply Ability: 1000000 PCS PER MONTH
Contact Now

KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301 Bimetallic Thermostat

,

KSD301 Thermostat Bimetallic

,

KSD301 Thermal Switch

KSD301 Thermal Switch - Bimetallic Thermostat
Product Overview

The KSD series thermal switches (including KSD301, KSD302, KSD303, KSD304 models) are bimetallic thermostats designed for precise temperature control in electrical appliances. These reliable components feature snap-action operation with fixed working temperatures, minimal flashover, long service life, and reduced radio interference.

KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Bracket Movable or immovable
Terminal Options
  • Type: 187 series (4.8*0.5mm, 4.8*0.8mm), 250 series (6.3*0.8mm)
  • Angle: 0~90° bending angle (optional)
Housing Material Plastic or ceramic

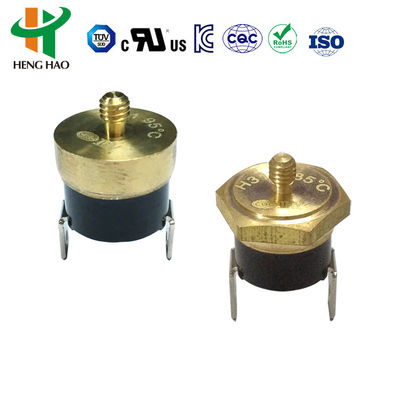

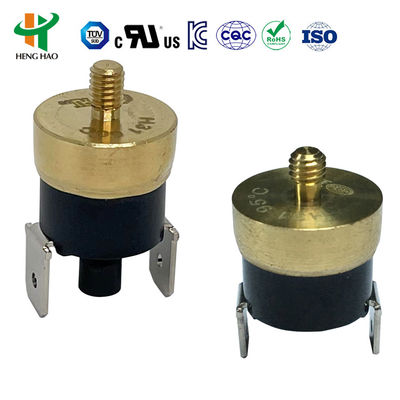

Temperature Sensor Face Aluminum cap or copper head
Reset Types

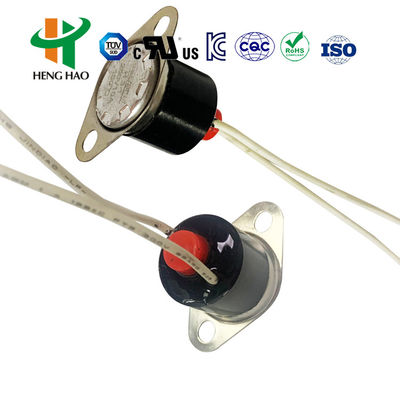

Manual Reset Type: Requires physical reset button activation after temperature drops approximately 20°C from trip point. Recommended reset force: 4-6N.

Auto Reset Type: Automatically resets when temperature decreases to specified reset point without manual intervention.

Applications
KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1

Widely used in temperature control for:

  • Coffee makers
  • Toasters
  • Laminators
  • Electric kettles
  • Steam irons
  • Microwave ovens
  • Water dispensers
  • Space heaters
Standard Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
(Complete temperature range table shown - custom settings available)
Certifications: UL, CQC, TUV, VDE, RoHS compliant
KSD301 Thermal Switch Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 2
