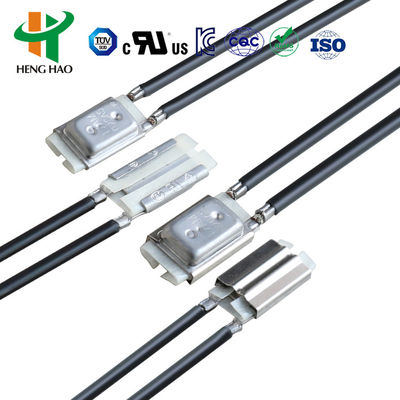

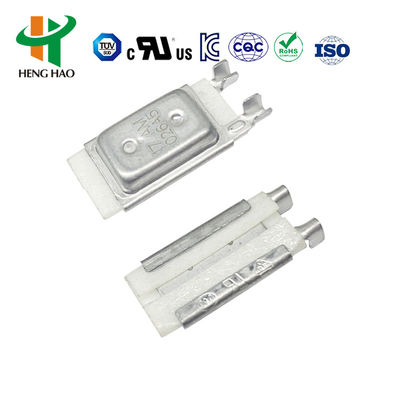

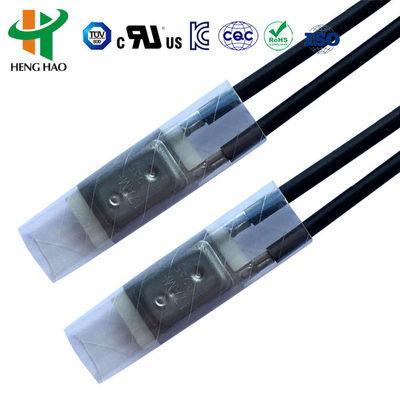

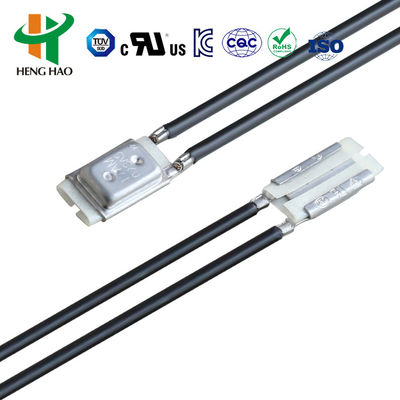

17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design

17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design
17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design
17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design

Large Image :  17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: 17AM
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.15~0.2/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month
Contact Now

17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Metal
Highlight:

17AM035A5 Bimetallic Thermostat

,

10A Bimetallic Thermostat

,

7AM Temperature Controller

17AM035A5 250V 10A Bimetallic Thermostat 17AM Thermostat 7AM Temperature Controller
17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 0
The 17AM035A5 is a compact bimetallic thermostat with quick and accurate action. It features customizable lead configurations to meet specific customer requirements.
Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Durability: Over 10,000 operations
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z
17AMH: Product series
XXX: Trip temperature in °C code
A/B: Terminal direction (A: same, B: opposite)
5: OFF temperature tolerance code
A-Z: Connecting wire type
Trip Temperature Codes
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038
Product Drawings
17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 1 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 2 17AM035A5 250V 10A Bimetallic Thermostat with 50-150℃ Range and Metal Case Compact Design 3
Applications
The 17AM temperature switch is suitable for various applications including:
  • Fluorescent lamp starters
  • Transformers
  • Laminators
  • Lighting systems
  • Cover sealing machines
  • Household appliances
Certifications
This product has UL, CQC, VDE and RoHS certification approval.
Manual Reset Operation
The manual reset type features a bimetallic strip temperature sensing component. When the temperature reaches the action range, the contacts quickly disconnect. The circuit cannot be reconnected until the temperature declines to a fixed point and the reset button is pressed (4-6N force recommended). The reset button requires at least 20.4mm clearance for proper operation.
