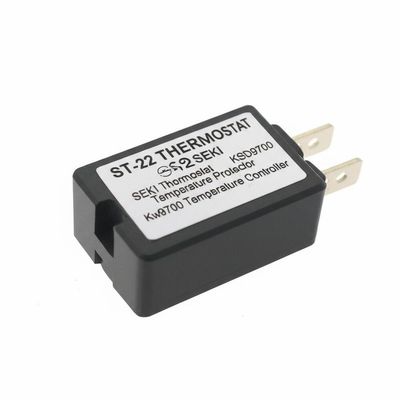

ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case

ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case
ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case
ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case

Large Image :  ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month year
Contact Now

ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Bakelite
Highlight:

ST-22 SEKI Thermostat

,

Kw9700 Temperature Controller

,

KSD9700 Temperature Protector

ST-22 SEKI Thermostat KSD9700 Temperature Protector Kw9700 Temperature Controller
The ST-22 SEKI Thermostat KSD9700 is a universal temperature protector featuring a large metal casing. Its construction includes a thermal conductive metal casing, bimetallic parts with silver alloy contact points, conductive bracket, insulation fixation stand, fixed contact strip, and heat resistance cable. During abnormal operation, when environmental temperature reaches the set value, the bimetallic components activate quickly to open the contact point and disconnect the circuit. Normal operation resumes automatically when the device cools to a safe temperature.

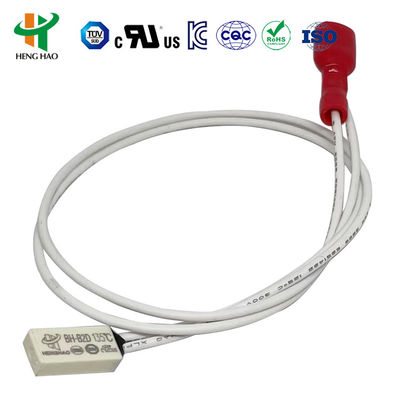

ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case 0
Specifications
Feature Specification
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C (customizable)
Life times 10000 times
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
Certifications
  • UL File no: E487478
  • CQC certificate no: CQC16002142880
  • TUV certificate no: B160592241002
Dimensions
Model Case Length(mm) Width(mm) Height(mm) Vol.&Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)
BH-B2D Plastic 15 7.1 3.8
BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
Applications
The H20/H21 series is suitable for chargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heat electric appliances, and instruments.
Operation Types
  • Manual reset type: When temperature reaches the action range, the bimetallic strip activates to disconnect the circuit. Requires manual reset by pushing a button after temperature declines 20°C (4-6N force recommended). Minimum 20.4mm clearance required between reset button and cover.
  • Auto reset type: Automatically resets and resumes operation when temperature declines to a safe level.
This product holds UL, CQC, TUV and RoHS certifications.

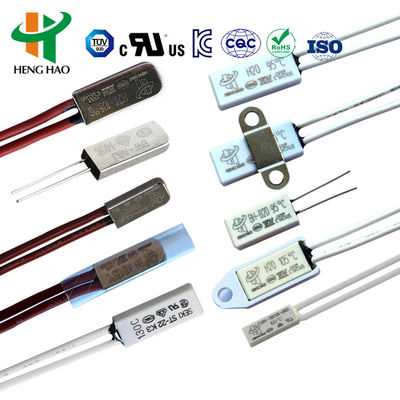

ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case 1

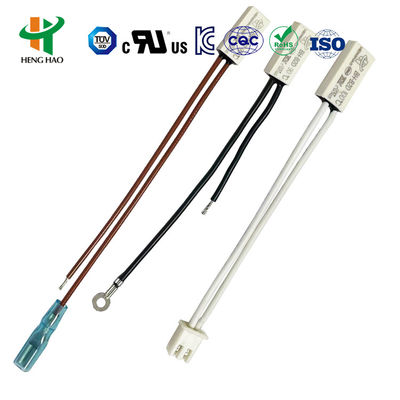

ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case 2

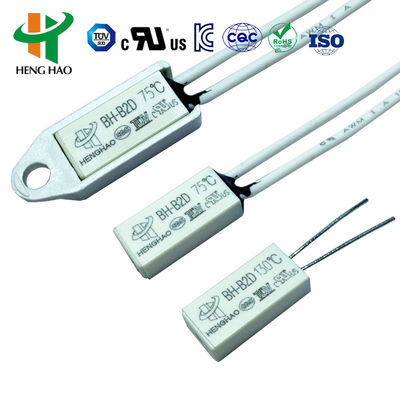

ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case 3
ST-22 SEKI Thermostat Temperature Controller with 50-150℃ Range 100000 Cycles and Bakelite Case 4
