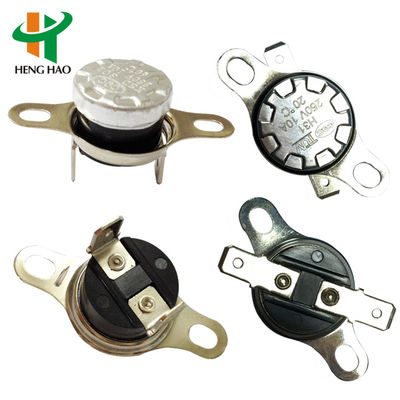

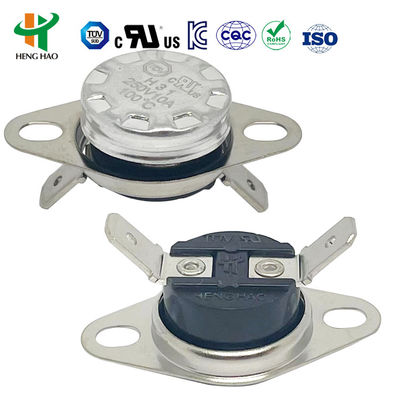

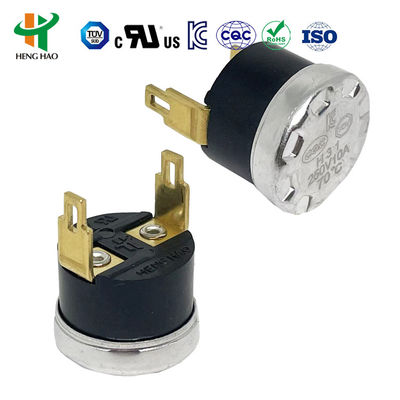

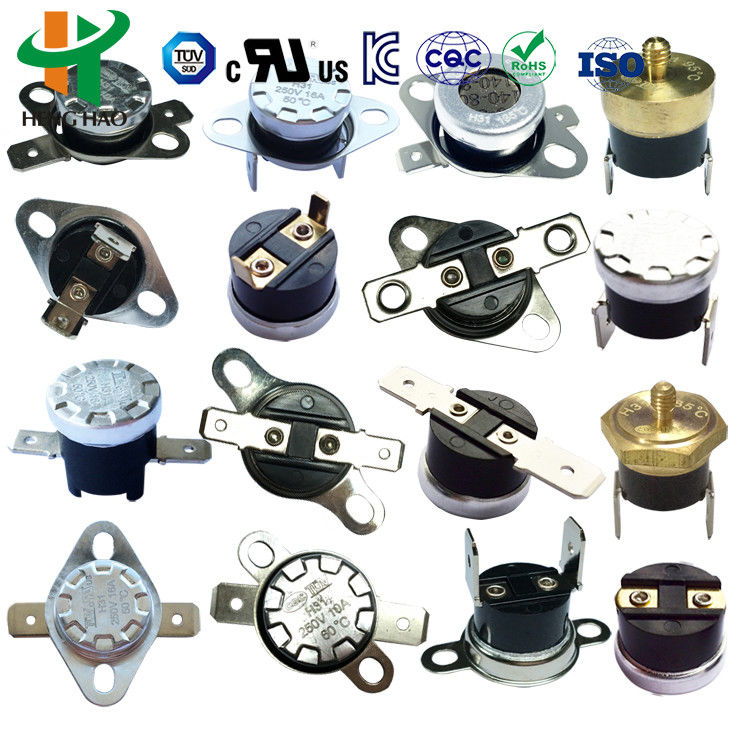

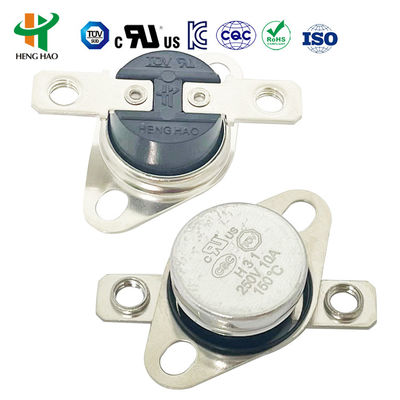

KSD301-G KSD301-R KSD301-V Temperature Switch Thermostat
The KSD series thermostat operates on the principle of bimetallic discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Snap-Action Thermostat Specifications
Voltage & Current: AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature: 0~250℃
Recovery and action temperature difference: 0 to 25 degrees, or according to client's request
Temperature deviation: ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance: ≤50mΩ (Initial value)
Insulation resistance: AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle: ≥100000 times
Contact type: Normally closed or Normally open
Mounting bracket: movable or immovable
Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
Terminal Angle: bending angle: 0~90°C optional
Housing: plastic or ceramic

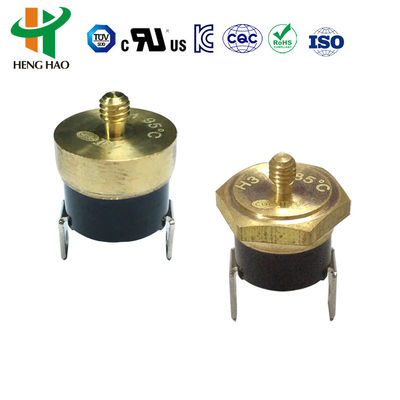

Temperature sensor face: aluminum cap or copper head
KSD302 Auto Reset vs Manual Reset Types
Manual Reset Type: Uses bimetallic strip temperature sensing. When temperature reaches action range, contacts disconnect and require manual reset button press (4-6N force) after temperature declines 20°C. Requires minimum 20.4mm clearance between reset button and cover.
Auto Reset Type: Uses bimetallic strip temperature sensing. Contacts automatically reset when temperature declines to specified point without manual intervention.
KSD303 Snap-Action Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, laminators, steam irons, warmers, water dispensers, and similar equipment.
Temperature Settings
| Open Temp. |
Reset Temp. |
Open Temp. |
Reset Temp. |
Open Temp. |
Reset Temp. |
| -20℃±5℃ |
5℃±5℃ |
95℃±5℃ |
80℃±5℃ |
205℃±5℃ |
175℃±10℃ |
| -15℃±5℃ |
5℃±5℃ |
100℃±5℃ |
80℃±10℃ |
210℃±5℃ |
180℃±10℃ |
| -10℃±5℃ |
5℃±5℃ |
105℃±5℃ |
85℃±10℃ |
215℃±5℃ |
185℃±10℃ |
| 0℃±5℃ |
-10℃±5℃ |
110℃±5℃ |
90℃±10℃ |
220℃±5℃ |
190℃±10℃ |
| 5℃±5℃ |
-5℃±5℃ |
115℃±5℃ |
95℃±10℃ |
225℃±5℃ |
195℃±10℃ |
| (Additional temperature settings available - custom configurations possible according to client requirements) |
This product holds UL, CQC, TUV and RoHS certifications.
