Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection

Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection
Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection
Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection

Large Image :  Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC
Model Number: S01
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1-`0.5pcs
Packaging Details: 2000pcs /carton
Delivery Time: 10~15 workdays
Payment Terms: T/T
Supply Ability: 10000000pcs per month
Contact Now

Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

ST01 Bimetallic Thermostat

,

ST11 Bimetallic Thermostat

,

Temperature Controlled Switch Bimetallic Thermostat

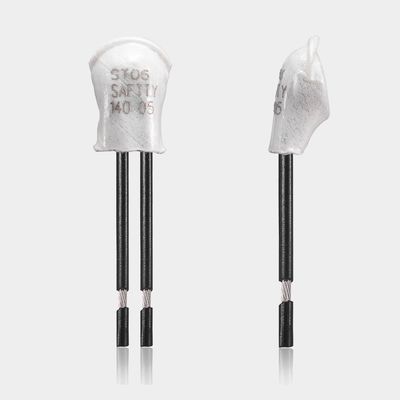

ST01 Bimetallic Thermostat ST11 Thermostat ST06 Temperature Protector Temperature Controlled Switch

The BW & BH series bimetallic thermostats provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, silent operation, and automatic reset functionality. The temperature and current-sensitive bimetallic components change state to either cut off or restore the circuit when abnormal conditions occur.

The BH series offers enhanced safety with no temperature effect lag during sudden current surges, making it superior to standard protectors.

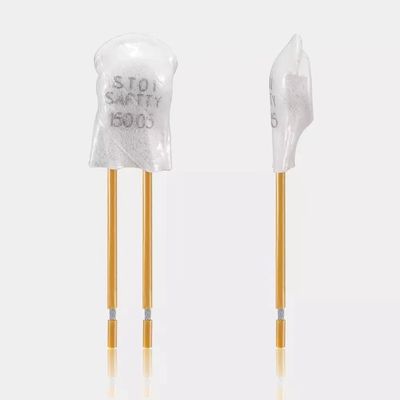

ST01 Temperature Protector Specifications
Specification Details
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C steps
Reset temperature 2/3 of action temperature (±15°C tolerance). Custom reset temperatures available.
Life times 10,000 cycles
Size L15mm × W7.1mm × H3.8mm
Lead wire #22 3266, end half tripping, 70mm length (custom options available)
Certifications UL File: E487478 | CQC: CQC16002142880 | TUV: B160592241002
ST01 Series Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, 70mm length (custom options available)

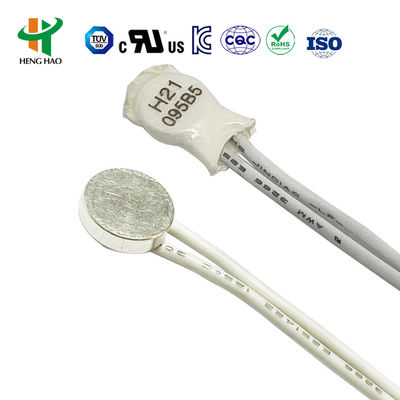

H21 Metal 18.5 × 7.3 × 3.8 AC250V 20A #16 3135
BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, 70mm length (custom options available)
Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection 0
Applications

The ST01 temperature protector serves as an effective security device in various applications including:

  • 1.5 horsepower motors
  • Inverter welding machines
  • Switch power supplies
  • Fluorescent lamp ballasts
  • Electric appliances and equipment

Enforced types capable of withstanding 3.5MPa pressure are suitable for plastic-coated motor installations.

Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃

All products are UL, CQC, TUV and RoHS certified.

Bimetallic Thermostat Temperature Protector with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly for Over-Current and Over-Temperature Protection 1
