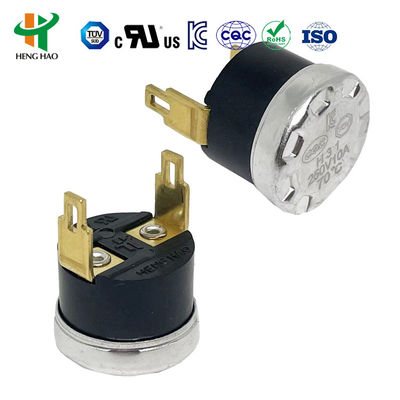

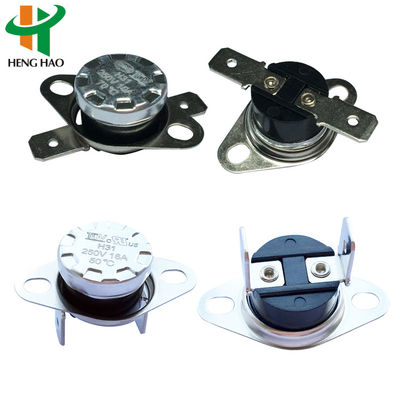

Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Large Image :  Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

TI/33 Bimetallic Thermostat

,

TIM Temperature Controller Thermostat

,

Thermal Fuse Thermostat

TI/11 Thermostat TI/33 Bimetallic Thermostat TIM Temperature Controller Thermal Fuse
The KSD series thermostat operates on the principle of bimetallic discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, extended lifespan, and reduced radio interference.
Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic

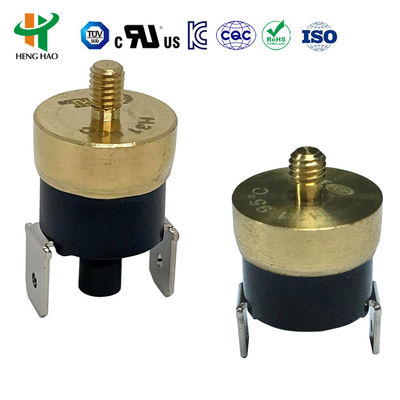

Temperature sensor face Aluminum cap or copper head
KSD301 Auto Reset vs Manual Reset Types

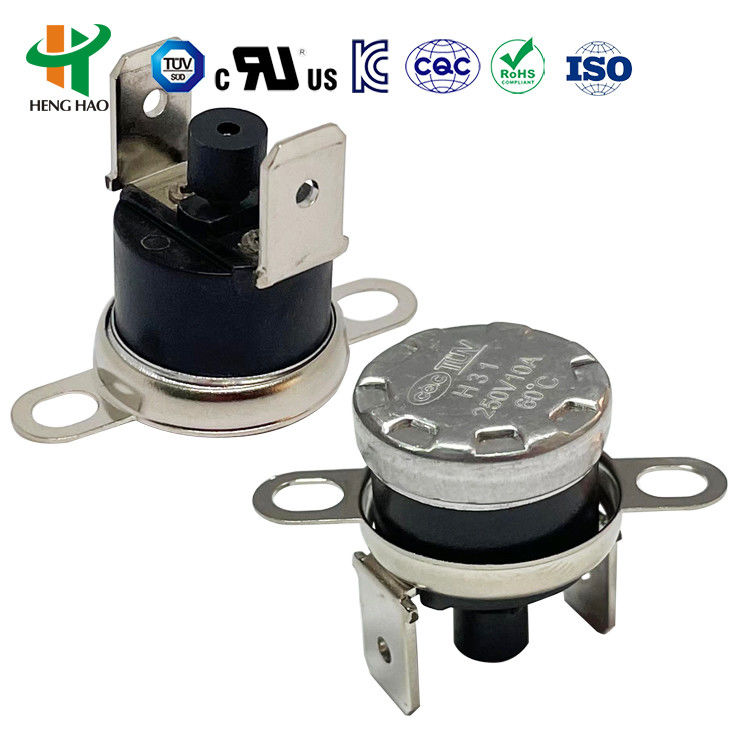

Manual Reset Type: Uses bimetallic strip components that disconnect at the action temperature range. Requires manual reset via button press after temperature decreases by 20°C (4-6N force recommended). Minimum 20.4mm clearance required between reset button and cover.
Auto Reset Type: Similar bimetallic components automatically reconnect when temperature drops to the reset point without manual intervention.
KSD302 Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, laminators, warmers, water dispensers, and various heating equipment.
Temperature Specifications
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
Custom specifications available according to client requirements
Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 1
UL CQC TUV RoHS Certified product meeting international standards
