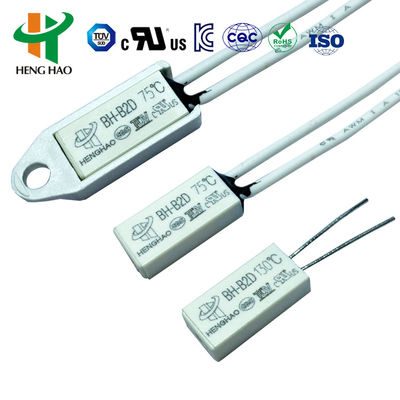

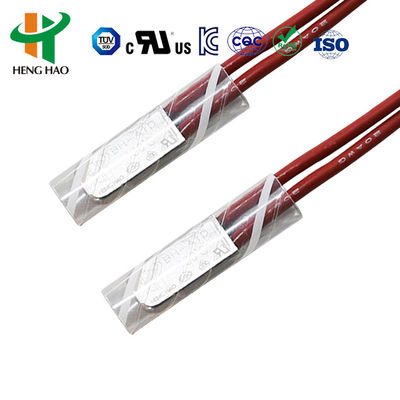

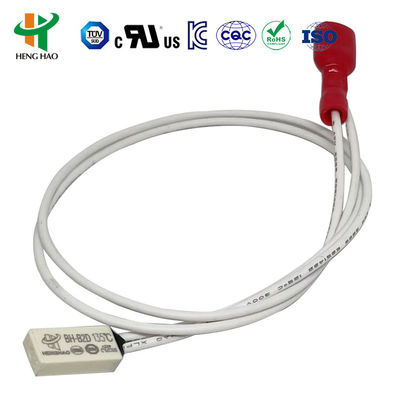

Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly

Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly
Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly
Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly

Large Image :  Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC
Model Number: bw-abs
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1~0.5PCS
Packaging Details: 2000PCS /CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PCS PER MONTH
Contact Now

Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

TB11-BB1D Thermal Fuse

,

TB11-BB5D Bimetallic Thermostat

,

TB05-BB5D Bimetallic Thermostat

TB11-BB5D Thermostat TB05-BB5D Bimetallic Thermostat TB11-BB1D Thermal Fuse

The BW & BH series thermostats provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The bimetallic components respond to both temperature and current changes, activating to cut off or restore the circuit as needed. BH series models offer enhanced safety with immediate response to sudden current surges.

Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly 0
9700 Series Thermostat Specifications
Specification Details
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C steps
Reset temperature 2/3 of action temperature (±15°C tolerance) or customized
Life times 10,000 cycles
Size L15mm × W7.1mm × H3.8mm
Lead wire #22 3266, 70mm length (customizable)
Certifications UL E487478 | CQC16002142880 | TUV B160592241002
9700 Series Thermal Protector Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, 70mm (customizable)
H21 Metal 18.5 × 7.3 × 3.8 AC250V 20A #16 3135

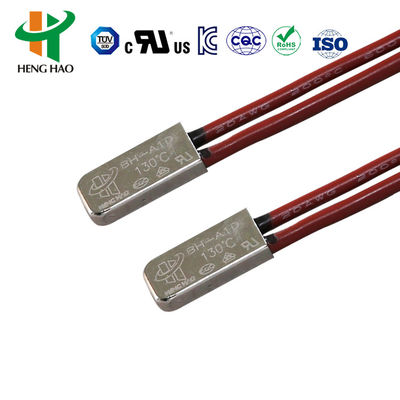

BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V Multiple options available
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
Applications

These thermostats are widely used in:

  • 1.5HP motors and electric equipment
  • Inverter welding machines
  • Switch power supplies
  • Fluorescent lamp ballasts
  • Various electrical appliances
H20/H21 Series Features

Universal and enhanced protectors with large metal casing composed of:

  • Thermal conductive metal casing
  • Bimetallic components with silver alloy contacts
  • Conductive bracket and insulation stand
  • Heat resistance cable
Bimetallic Thermostat Thermal Overload Protector Switch with Normally Closed or Normally Open Auto Reset or Manual Reset Sealed Firmly 1
Certifications: UL, CQC, TUV, and RoHS compliant
