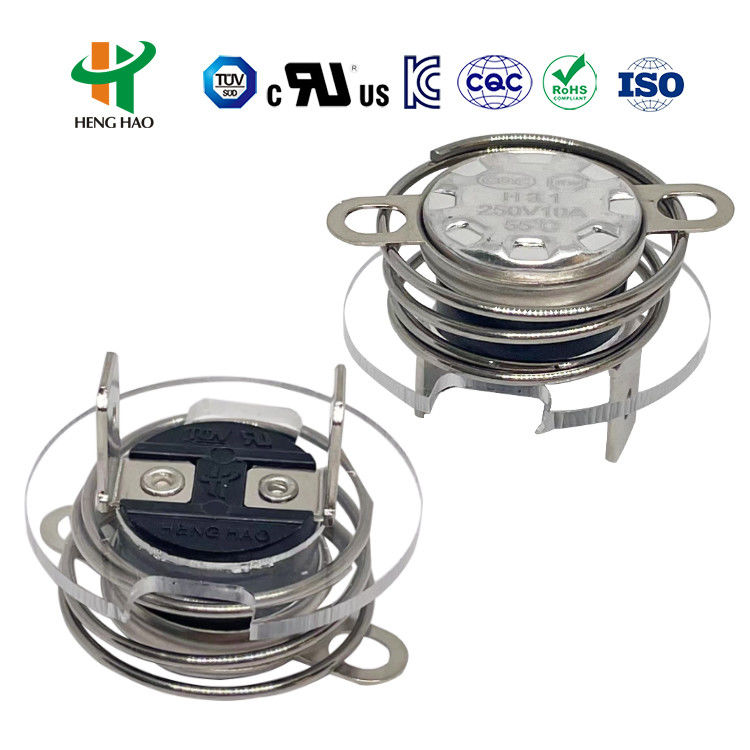

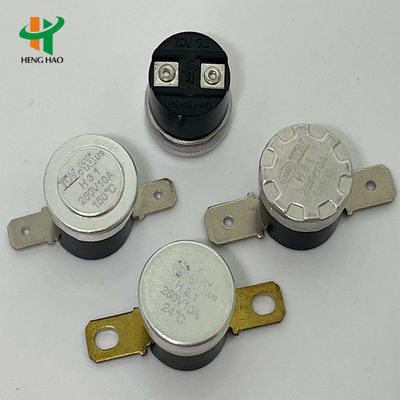

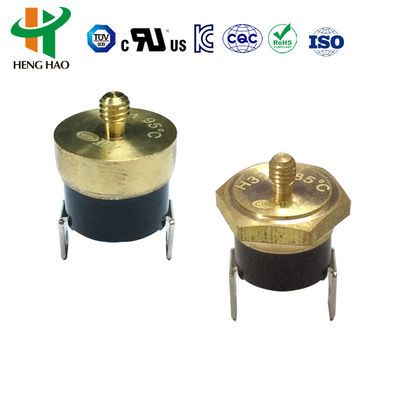

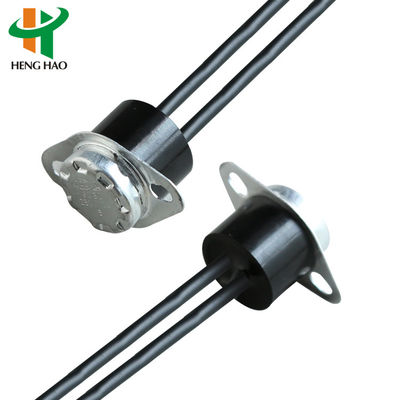

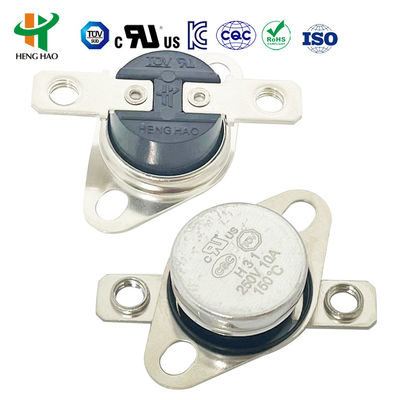

250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range

250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range
250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range
250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range 250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range 250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range 250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range 250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range 250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range 250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range 250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range

Large Image :  250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENHGAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.18
Packaging Details: 2000PCS?CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T,D/P
Supply Ability: 1000000PER MONTH
Contact Now

250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

Thermal Cut Off Switch KSD301

,

250V KSD301 Thermostat

,

16A KSD301 Thermostat

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch
Product Overview

The KSD302 thermal switch is a bimetallic thermostat designed for reliable temperature control in various electrical appliances. Its snap-action mechanism ensures precise temperature regulation with minimal flashover and long service life.

250V 16A KSD301 Bimetallic Thermostat with 100000 Cycles and 0~250℃ Temperature Range 0
Working Principle

The KSD series thermostat operates through the snap action of a bimetallic disc that responds to temperature changes. This action activates internal contacts to open or close the electrical circuit, providing reliable temperature control.

Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (customizable)
Temperature Deviation ±3 / ±5 / ±10 degree (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Options Movable or immovable bracket
Terminal Types 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
Applications

This thermal switch is widely used for temperature control in household appliances including:

  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃

Custom temperature settings available according to client requirements.

Additional Resources

For more information about our thermostats, visit: KSD Thermostats or Thermostat Solutions
