SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection

SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection
SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection
SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection

Large Image :  SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: BW-ABS
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: USD 0.15~0.3PCS
Packaging Details: 2000PCS
Delivery Time: 10~15PCS
Payment Terms: T/T
Supply Ability: 1000000PCS
Contact Now

SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Rese
Temperature Range: 50-150℃ Case: Plastic
Highlight:

BW-ABS Thermostat

,

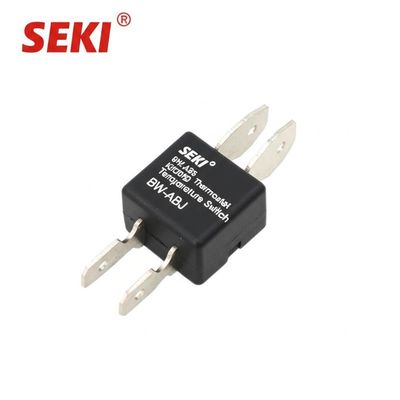

BW-ABJ Thermostat

,

SEKI ST-22 Thermostat

SEKI ST-22 Thermostat BW-ABS Thermostat KSD9700 Temperature Switch BW-ABJ

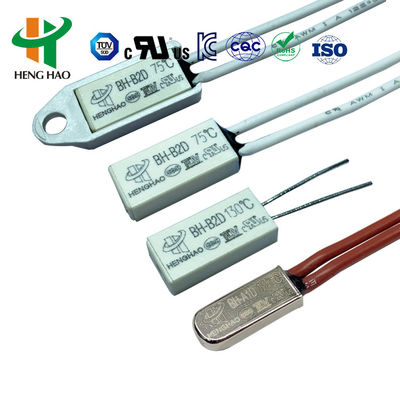

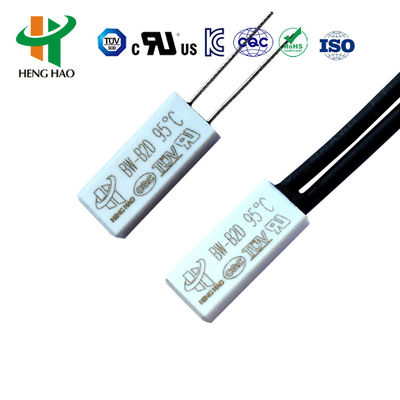

BW & BH series protectors offer reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, silent operation, and automatic reset functionality. The temperature and current-sensitive bimetallic components change state when exposed to excessive conditions, either cutting off or restoring the circuit as needed. BH series provides enhanced safety with immediate response to sudden current surges.

SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection 0
ST-22 Thermal Protector Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (custom options available)
Certifications UL File no: E487478
CQC no: CQC16002142880
TUV no: B160592241002
ST-22 Series Dimensions

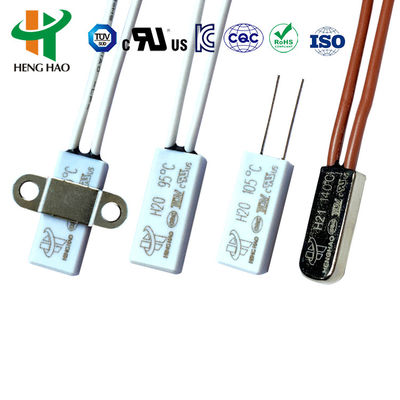

Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead Wire

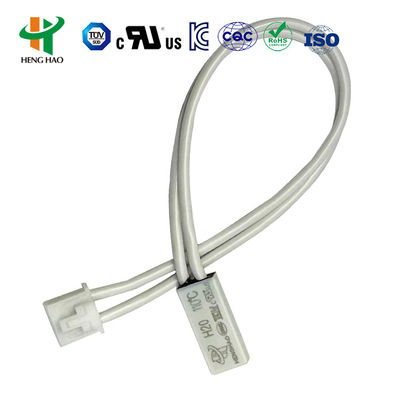

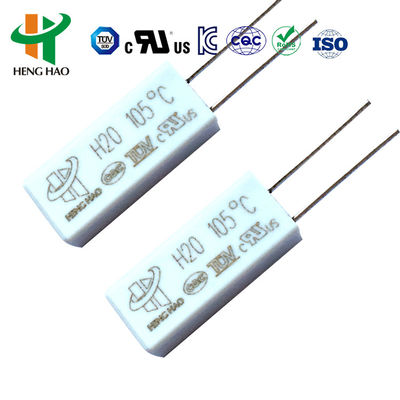

H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (custom options available)
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (custom options available)
Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
Applications

The ST-22 thermal protector serves as an effective security device for various applications including 1.5 horsepower motors, inverter welding machines, switch power supplies, fluorescent lamp ballasts, and other electrical equipment. The reinforced version withstands pressures up to 3.5MPa, making it suitable for plastic-coated motor installations.

SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection 1 SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection 2 SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection 3 SEKI ST-22 Thermostat with 100000 Cycles Plastic Case Temperature Switch for Over-Current Protection 4

This product holds UL, CQC, TUV and RoHS certification approvals.
