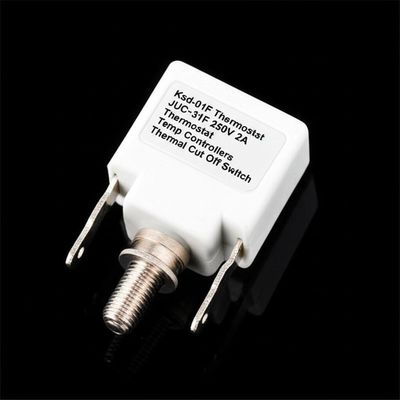

KSD-01F Thermostat JUC-31F 250V 2A Thermostat Temperature Controllers Thermal Cut Off Switch
KSD9700 Temperature Protector Principle and Structure

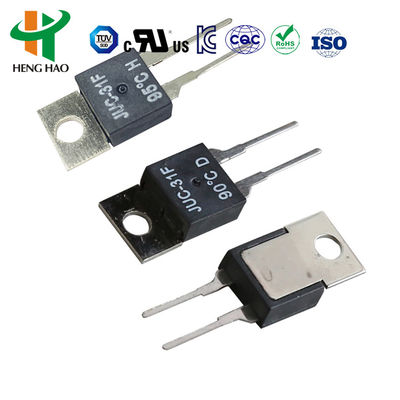

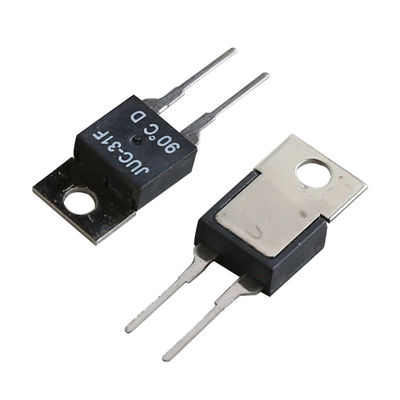

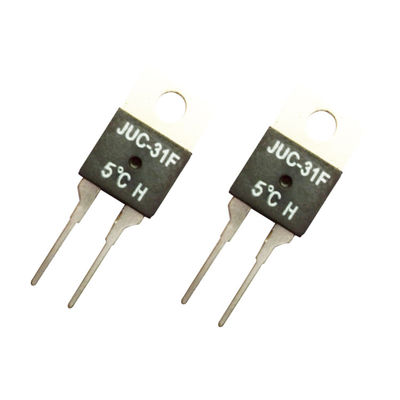

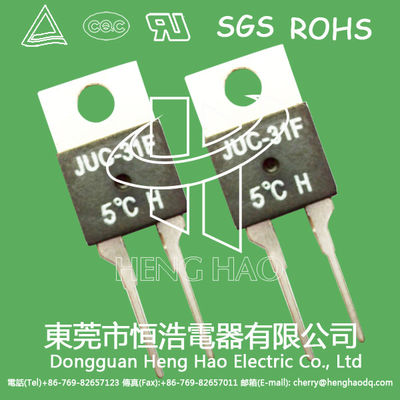

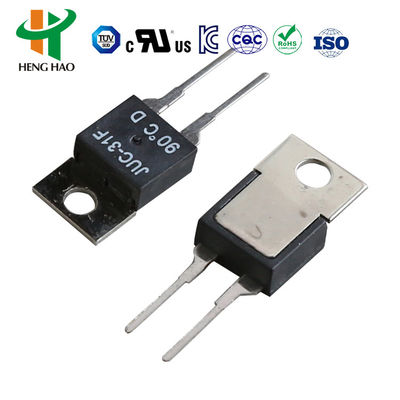

This product is a touch-type plastic snap temperature thermostat sensor. It adopts the international TO220/Y220 standard package, featuring high reliability, sensitive and accurate response, compact size, lightweight design, and easy installation. Ideal for PCB circuit boards, heat equipment, and power device applications.
KSD9700 Temperature Protector Specifications
- Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
- Contact type: ID (closed) H (open)
- Overheating temperature: 250°C
- Contact resistance: less than 50mΩ
- Insulation resistance: more than 100 mΩ
- Dielectric withstand voltage: more than 1500V
- Product life: more than 10,000 cycles
- Weight: 1.7 g
- Action temperature deviations: ±5°C
| Operating temperature/°C |
Recovery temperature/°C |
Error |
Testing way |
| 0~99 |
5~35 |
±3°C |
1°C/min |
| 100~130 |
7~40 |
±5°C |
1°C/min |
KSD9700 Temperature Protector Applications
The KSD-01F temperature protector is suitable for electric equipment, electric products, household appliances, communication power supplies, switching power supplies, UPS power supplies, module power supplies, various types of rechargeable devices, rectifiers, inverters, welding equipment, aerospace instrumentation, electronic equipment, automation equipment, military, and commercial product temperature control or temperature protection.
This product has UL, CQC, VDE and RoHS certification approval.
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector
Can be used instead of KLIXON 17AM thermal protector.
17AMH Thermostat Principle and Structure
17AM is an excess-current thermal protector with compact design, featuring quick and accurate action. We can rivet different types of leads according to customers' requirements.
17AM Thermal Protector Specifications
- Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
- Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
- Operating temperature range: 50-180°C
- Temperature tolerance: ±2°C±3°C±5°C
- Reset temperature: 10~45 degrees in off temperature decline
- Working times: Over 10,000 cycles
Code System
17AM XXX A/B 5 A,B,C,D...Z
- (17AMH): The number of product series
- (XXX): Trip off temperature in °C Code
- (A/B): A: Terminals in the same direction / B: Terminals in the opposite direction
- (5): OFF Temperature Tolerance Code
- (A,B,C,D...Z): Different type of connecting wire
