KSD301 Bimetal Thermostat 250V 16A with 100000 Cycles and 0-250℃ Temperature Range

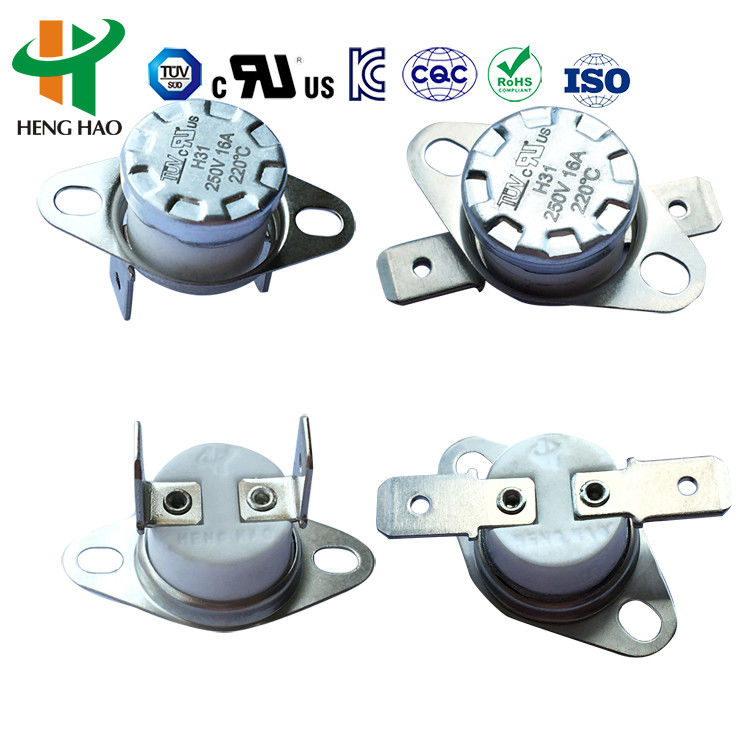

Large Image : KSD301 Bimetal Thermostat 250V 16A with 100000 Cycles and 0-250℃ Temperature Range

Product Details:

Place of Origin:	CHINA
Brand Name:	HENGHAO
Certification:	UL
Model Number:	H31

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	USD 0.3~0.5PCS
Packaging Details:	2000PCS/CARTON
Delivery Time:	10~15 WORKDAYS
Payment Terms:	T/T
Supply Ability:	1000000PCS PER MONTH

Contact Now

KSD301 Bimetal Thermostat 250V 16A with 100000 Cycles and 0-250℃ Temperature Range

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃	Case:	Metal
Highlight:	Snap-Action Thermostat , KSD301-G Thermostat , 250V 16A Thermostat

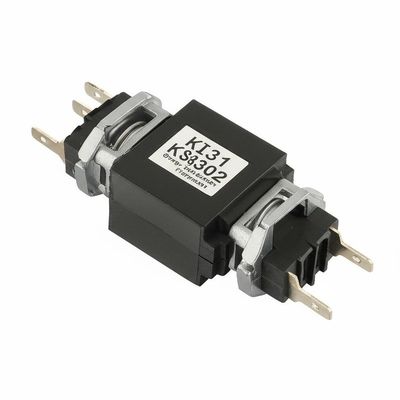

Temperature Controller Thermostat 250V 16A KI31 KSD301-G Ksd302 Snap-Action Thermostat

The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperature, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.

KSD301 Temperature Switch Specifications

Parameter	Specification
Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery and action temperature difference	0 to 25 degrees, or according to client's request
Temperature deviation	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Mounting bracket	Two kinds: movable or immovable
Terminal type	a. Terminal type: 187series of 4.80.5mm and 4.80.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
Housing	Plastic or ceramic
Temperature sensor face	Aluminum cap or copper head

KSD301 Auto Reset vs Manual Reset Types

Manual Reset Type:

Uses bimetallic strip temperature sensing components
Requires manual reset button press after temperature drops 20°C from action point
Recommended reset force: 4-6N (avoid excessive force)
Minimum 20.4mm clearance required between reset button and cover

Auto Reset Type:

Uses bimetallic strip temperature sensing components
Automatically resets when temperature drops to specified point
No manual intervention required

KSD303 Temperature Switch Applications

Widely used for temperature control in household appliances including coffee pots, laminators, steam irons, warmers, water dispensers, and similar equipment.

Temperature Settings

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃±5℃	5℃±5℃	95℃±5℃	80℃±5℃	205℃±5℃	175℃±10℃
-15℃±5℃	5℃±5℃	100℃±5℃	80℃±10℃	210℃±5℃	180℃±10℃
-10℃±5℃	5℃±5℃	105℃±5℃	85℃±10℃	215℃±5℃	185℃±10℃
0℃±5℃	-10℃±5℃	110℃±5℃	90℃±10℃	220℃±5℃	190℃±10℃
5℃±5℃	-5℃±5℃	115℃±5℃	95℃±10℃	225℃±5℃	195℃±10℃
10℃±5℃	0℃±5℃	120℃±5℃	100℃±10℃	230℃±5℃	200℃±10℃
15℃±5℃	5℃±5℃	125℃±5℃	105℃±10℃	235℃±5℃	205℃±10℃
20℃±5℃	5℃±5℃	130℃±5℃	110℃±10℃	240℃±5℃	210℃±10℃
25℃±5℃	10℃±5℃	135℃±5℃	115℃±10℃	245℃±5℃	215℃±10℃
30℃±5℃	15℃±5℃	140℃±5℃	120℃±10℃	250℃±5℃	220℃±10℃
(Additional temperature settings available - full specifications upon request)

This product has UL, CQC, TUV and RoHS certification approval.
