Bimetal Thermostat with 0~150°C Temperature Range Bakelite Case and 10000 Cycles Life

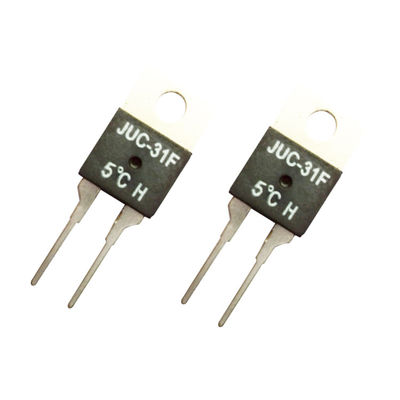

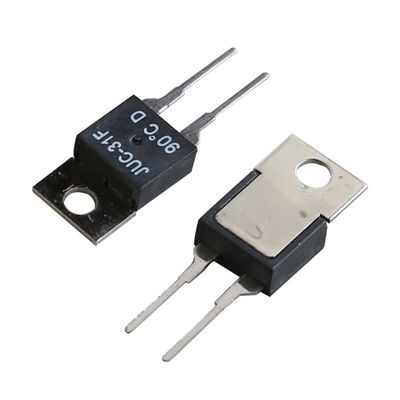

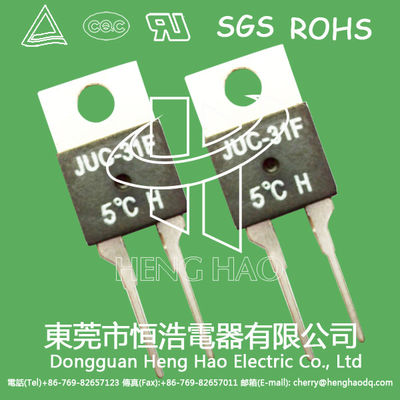

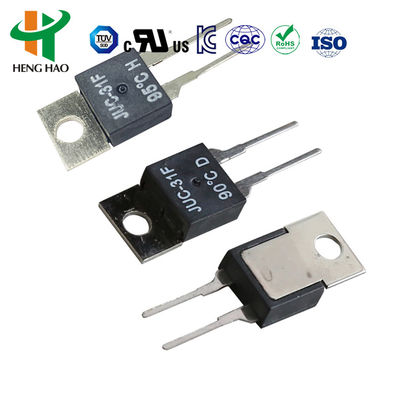

The JUC-31F is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This highly reliable sensor offers sensitive and accurate temperature control with compact dimensions and lightweight design for easy installation on PCB circuit boards, heat equipment, and power devices.

• Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
• Contact type: ID (closed) H(open)
• Overheating temperature: 250°C
• Contact resistance: <50mΩ
• Insulation resistance: >100 mΩ
• Dielectric withstand voltage: >1500V
• Product life: >10,000 cycles
• Weight: 1.7g
• Action temperature deviations: ±5°C

The JUC-31F temperature controller is ideal for electric equipment, household appliances, communication power supplies, UPS systems, module power supplies, rechargeable devices, rectifiers, inverters, welding equipment, aerospace instrumentation, electronic equipment, automation systems, and military/commercial products requiring temperature control or protection.

The 17AMH thermostat is an excess-current thermal protector with compact design and quick, accurate action. Various lead types can be riveted according to customer requirements.

• Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact life cycles: AC-125V 15A/AC-250V 10A >10,000 cycles; AC-125V 5A >100,000 cycles
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C/±3°C/±5°C
• Reset temperature: 10-45°C below trip temperature
• Working times: Over 10,000 cycles

17AM XXX A/B 5 A,B,C,D...Z

• 17AMH: Product series number
• XXX: Trip off temperature in °C code
• A/B: Terminal direction (A=same, B=opposite)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type
