JUC-31F Thermostat 250V 2A KSD-01F Thermostat Bi Metal KSD-01F Bimetallic Thermostat
JUC-31F Bimetallic Thermostat Principle and Structure

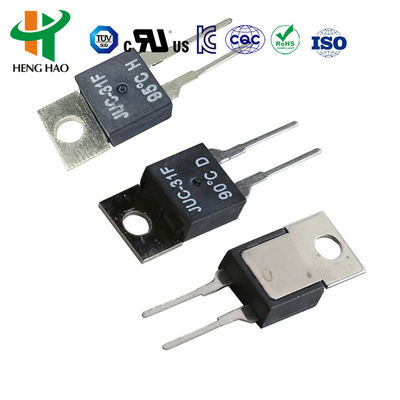

This touch-type plastic snap temperature thermostat adopts the international TO220/Y220 standard package. It features high reliability, sensitive and accurate temperature response, compact size, lightweight design, and easy installation. Ideal for PCB circuit boards, heat equipment, and power device applications.
JUC-31F Bimetallic Thermostat Specifications
- Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
- Contact type: ID (closed) H(open)
- Overheating temperature: 250°C
- Contact resistance: < 50mΩ
- Insulation resistance: > 100 mΩ
- Dielectric withstand voltage: > 1500V
- Product life: > 10,000 cycles
- Weight: 1.7 g
- Action temperature deviations: ±5°C
| Operating temperature/°C |
Recovery temperature/°C |
Error |
Testing way |
| 0~99 |
5~35 |
±3°C |
1°C/min |
| 100~130 |
7~40 |
±5°C |
1°C/min |
JUC-31F Bimetallic Thermostat Applications
This thermostat is suitable for electric equipment, household appliances, temperature control protection, thermal overload protection in circuit boards, communication power supplies, switching power supplies, UPS power supplies, medical power supplies, fire power systems, module power supplies, audio amplifier equipment, rechargeable devices, rectifiers, inverters, welding equipment, aerospace instrumentation, electronic equipment, automation systems, military, and commercial product temperature control or protection.
More information: www.thermostat-cn.com
17AMH Thermal Protector / 17AMH Thermostat
17AMH Thermostat Principle and Structure
The 17AM is an excess-current thermal protector with compact design and quick, accurate action. We can rivet different types of leads according to customer requirements.
More information: www.thermostat-cn.com
17AM Thermal Protector Specifications
- Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
- Contact life cycles: AC-125V 15A, AC-250V 10A > 10,000 cycles; AC-125V 5A > 100,000 cycles
- Operating temperature range: 50-180°C
- Temperature tolerance: ±2°C, ±3°C, ±5°C
- Reset temperature: 10-45°C below trip temperature
- Working times: Over 10,000 cycles
17AM Code System
17AM_XXX_A/B_5_A,B,C,D...Z
- (17AMH): Product series number
- (XXX): Trip off temperature in °C code
- (A/B): A - Terminals in same direction / B - Terminals in opposite direction
- (5): OFF temperature tolerance code
- (A-Z): Different types of connecting wire
