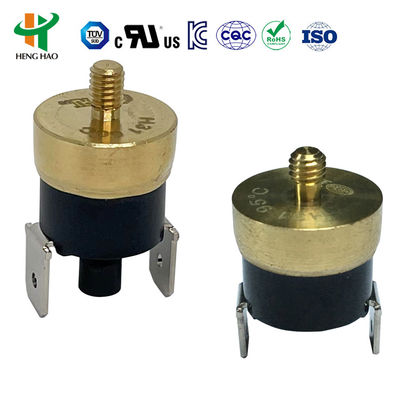

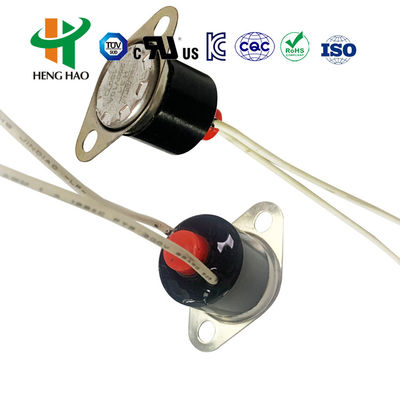

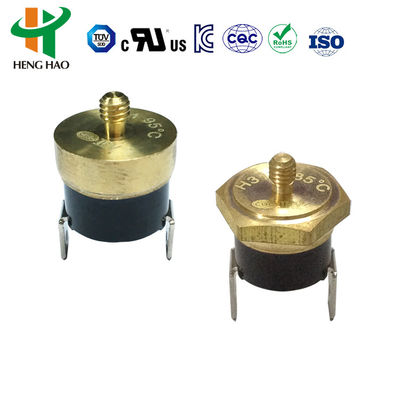

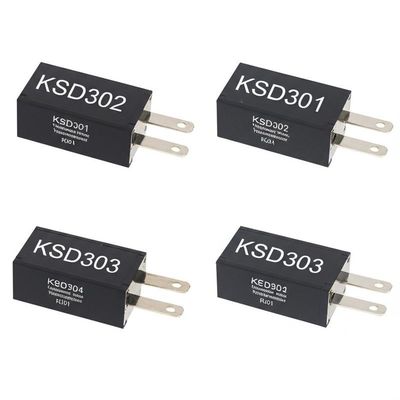

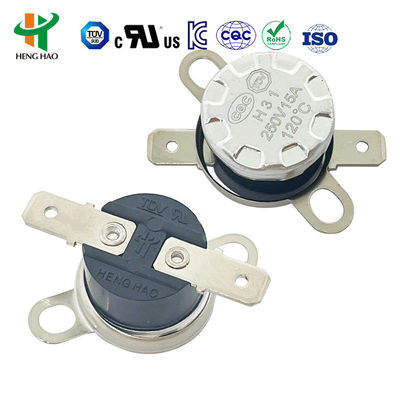

KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Large Image :  KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3 PER PC
Packaging Details: 1650 PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD304 Thermostat

,

KSD301 Temperature Controller

,

KI31 KSD301 Temperature Controller

KSD302 Bimetallic Thermostat Series
The KSD series thermostats utilize bimetallic discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits reliably. Key features include fixed working temperatures, dependable snap action, minimal flashover, extended lifespan, and reduced radio interference.
Product Specifications
KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 0 KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 1
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees, or custom
Temperature Deviation ±3/±5/±10 degree or custom
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Options Movable or immovable bracket
Terminal Types 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 2
Reset Types

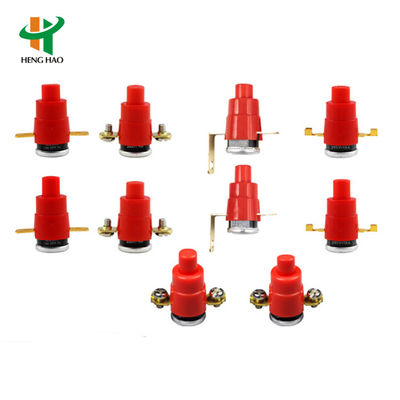

Manual Reset Type
When temperature reaches the action range, the bimetallic strip snaps to disconnect. The circuit remains open until manually reset by pressing the button (4-6N force recommended). Requires 20°C temperature drop before resetting. Minimum 20.4mm clearance required between reset button and cover.
Auto Reset Type
The bimetallic strip automatically resets when temperature drops to the specified level, restoring circuit operation without manual intervention.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
Custom temperature settings available upon request
Certified: UL, CQC, TUV and RoHS compliant KSD302 Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 3
