ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case

ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case
ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case
ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case

Large Image :  ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month year
Contact Now

ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Bakelite
Highlight:

Bimetallic Thermostat

,

Snap-Action Thermostat

,

250V 10A Thermostat

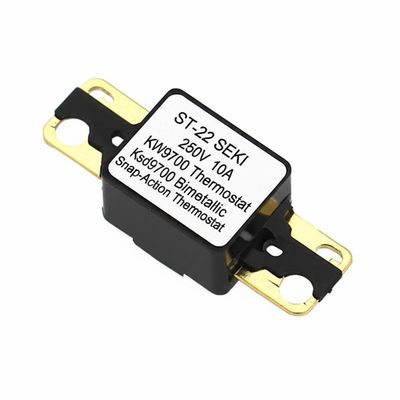

ST-22 SEKI 250V 10A KW9700 Thermostat Ksd9700 Bimetallic Thermostat Snap-Action Thermostat

The ST-22 SEKI series are universal and enhanced protectors with large metal casing, composed of thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable.

In case of abnormal operation, when the environment temperature increases to the set value, the bimetallic parts perform quick action to open the contact point and disconnect the circuit. When cooled to safe operating temperature, the contact point automatically closes to resume normal operation.

Key Features
  • Snap-action mechanism for reliable operation
  • Automatic reset function
  • Durable construction with silver alloy contacts
  • Thermal conductive metal casing
  • Certified to UL, CQC, TUV and RoHS standards
ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case 0
Technical Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C (customizable)
Life times 10000 cycles
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case 1
Model Specifications
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 × 7.3 × 3.8 AC250V 20A #16 3135

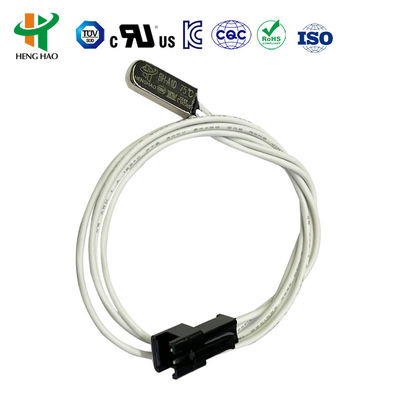

BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, length 70mm (customizable)

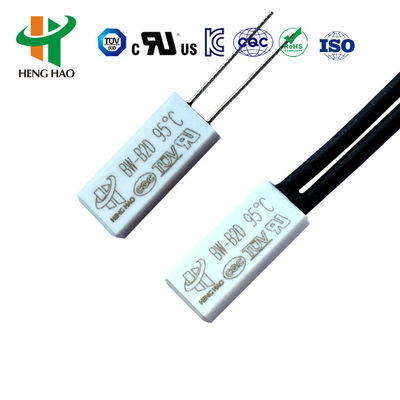

BH-B2D Plastic 15 × 7.1 × 3.8
BH-TB02B-B8D Plastic 15 × 5.2 × 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
Applications

The H20/H21 series is suitable for:

  • Chargeable batteries
  • Ballasts
  • Massagers
  • Micro motors
  • Transformers
  • Electric tools
  • Heat electric appliances
  • Instruments
Operation Types

Manual Reset Type: When temperature reaches the action range, the bimetallic strip quickly disconnects. The contact point cannot reset automatically - requires manual reset by pushing the reset button after temperature declines by 20°C (4-6N force recommended).

Auto Reset Type: Automatically resets when temperature declines to a fixed point after disconnection.

ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case 2 ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case 3 ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case 4 ST-22 SEKI 250V 16A Bimetallic Thermostat with 50-150℃ Range 100000 Cycles and Bakelite Case 5
