Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case

Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case
Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case
Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case

Large Image :  Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month year
Contact Now

Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Bakelite
Highlight:

Temperature Controlled Switch

,

Temperature Controlled Thermal Protector

,

Temperature Protector Switch

Thermal Protector Temperature Controlled Switch
The H20/H21 series universal and enhanced protectors feature large metal casings composed of thermal conductive metal casing, bimetallic parts welded with silver alloy contact points, conductive bracket, insulation fixation stand, fixed contact strip, and heat resistance cable. During abnormal operation, when environmental temperature reaches the set value, the bimetallic parts perform quick action to open the contact point and disconnect the circuit. When cooled to safe operating temperature, the contact point automatically closes to restore normal operation.
Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case 0
KW9700 Snap-Action Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available
Life times 10000 cycles
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
KW9700 Snap-Action Thermostat Dimensions
Model Case Length(mm) Width(mm) Height(mm) Vol.&Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135

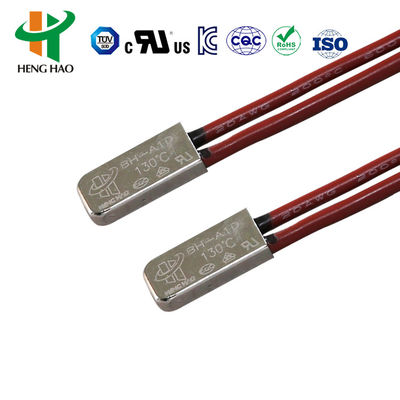

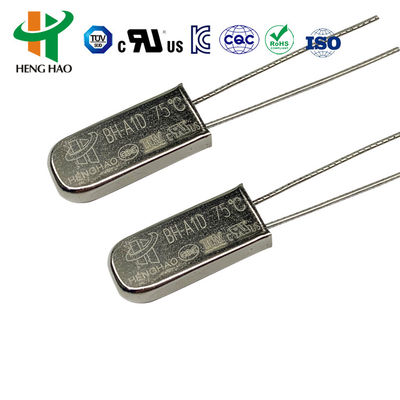

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)

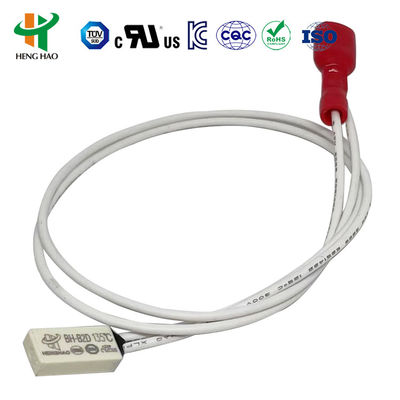

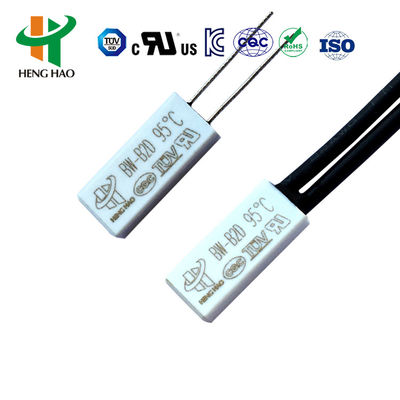

BH-B2D Plastic 15 7.1 3.8

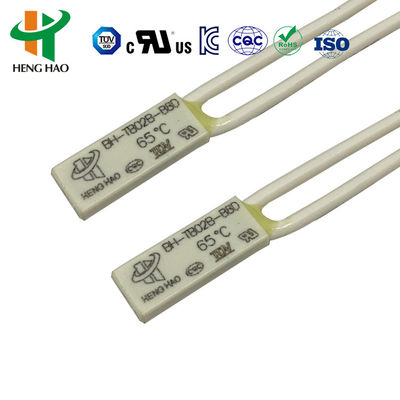

BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
H20/H21 Series Temperature Protector Applications
The H20/H21 series is suitable for rechargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heating appliances, and instruments.
Operation Types
Manual Reset Type: Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it quickly disconnects. The contact point cannot reset until manually pushing the reset button when temperature declines by 20°C (4-6N force recommended). Ensure ≥20.4mm clearance between reset button and cover.
Automatic Reset Type: Automatically resets and resumes operation when temperature declines to safe level.
Product holds UL, CQC, TUV and RoHS certifications.
Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case 1 Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case 2 Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case 3 Thermal Protector Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case 4
