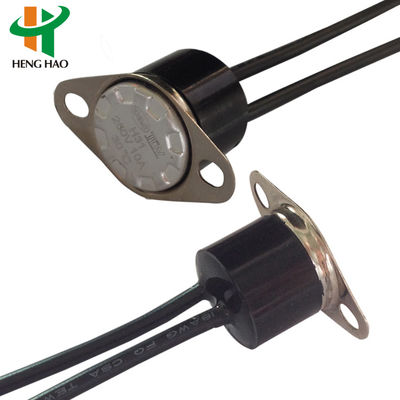

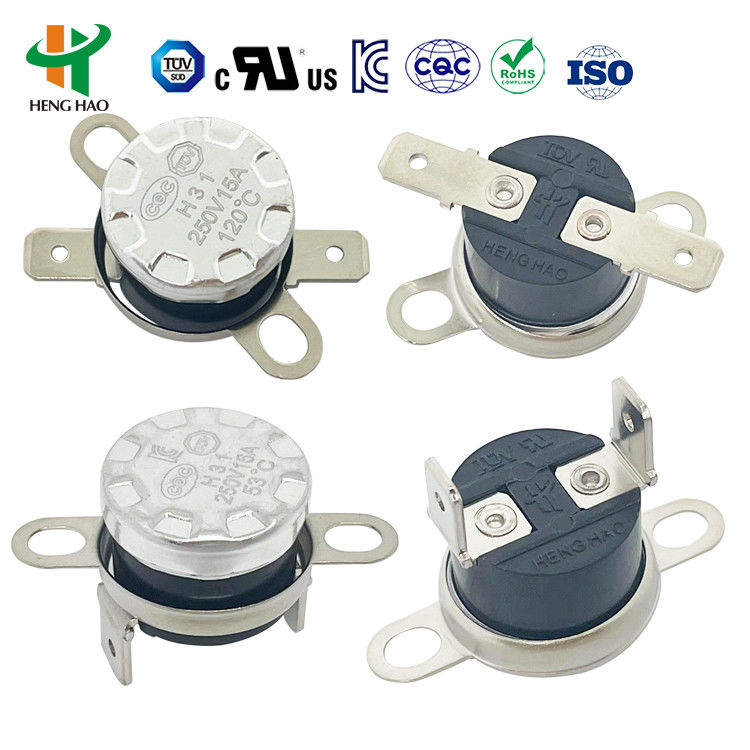

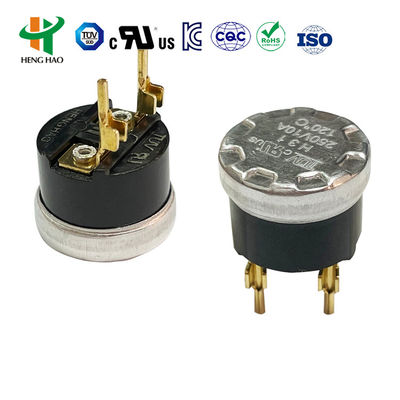

250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range

250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range
250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range
250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range

Large Image :  250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

250V 16A Thermal Cut Off Switch

,

Snap Action KSD301 Bimetal Thermostat

,

Snap Action Bimetallic Thermostat

250V 16A Thermal Cut Off Switch Snap Action Bimetallic Thermostat
The KSD series thermostat operates on the principle of bimetal discs that snap into action when sensing temperature changes. This snap action activates internal contacts to open or close the circuit. Key characteristics include fixed working temperature, reliable snap action, minimal flashover, extended service life, and reduced radio interference.
KSD302 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 0
KSD301 Auto Reset vs Manual Reset Types

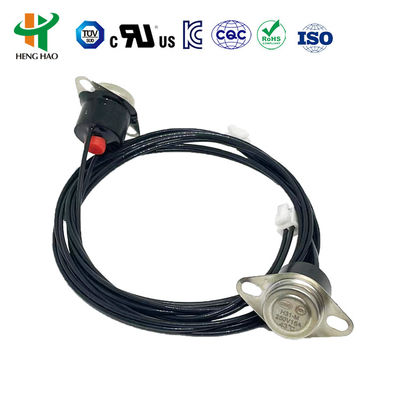

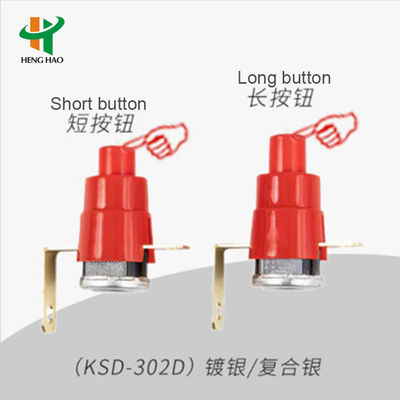

Manual Reset Type: Uses a bimetallic strip that snaps open at the action temperature. The circuit remains disconnected until manually reset by pressing a button (4-6N force recommended). Requires temperature to decline by 20°C before resetting. Minimum 20.4mm clearance required between reset button and cover.
Auto Reset Type: Uses a bimetallic strip that automatically resets and resumes operation when temperature declines to the reset point.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
Additional temperature settings available or customizable to client requirements
This product has UL, CQC, TUV and RoHS certification approval.
250V 16A KSD301 Bimetal Thermostat with 100000 Cycles and 0-250℃ Temperature Range 1
