Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case

Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case
Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case
Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case

Large Image :  Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month year
Contact Now

Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Bakelite
Highlight:

Temperature Protector Thermal Protector

,

Temperature Controlled Thermal Protector

,

Switch Temperature Protector Thermal Protector

Temperature Controlled Switch Temperature Protector Thermal Protector
BW-ABS serial universal and enhanced protectors with large metal casing are composed of thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, when environment temperature increases to the set value, the bimetallic parts perform quick action to open the contact point and disconnect the circuit. When cooled to safe operating temperature, the contact point automatically closes to restore normal operation.
KSD9700 Temperature Controlled Switch
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 times
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
Certifications: UL File no E487478 | CQC certificate no CQC16002142880 | TUV certificate no B160592241002
Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case 0
H20, H21 Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire

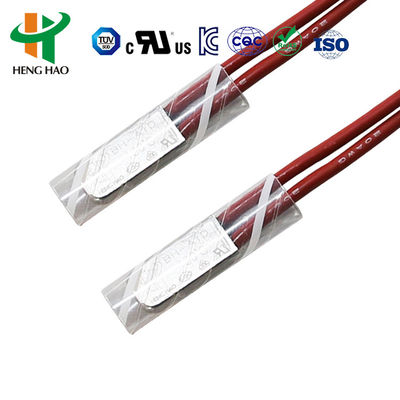

H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, length 70mm (customizable)

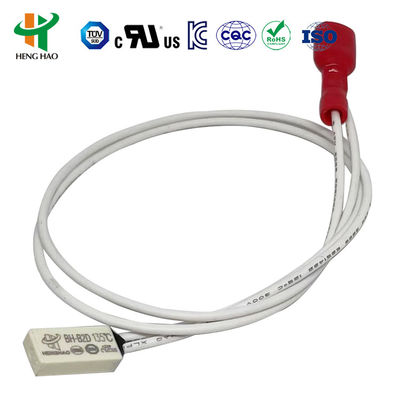

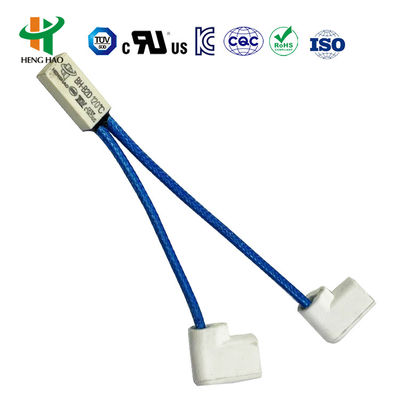

BH-B2D Plastic 15 7.1 3.8

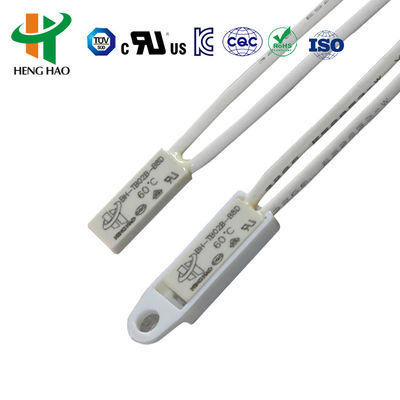

BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
H20, H21 Series Applications
Suitable for chargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heat electric appliances and instruments.
Operation Types
  • Manual reset type: When temperature reaches action range, bimetallic strip disconnects circuit. Requires manual reset button press (4-6N force) after temperature declines 20°C. Minimum 20.4mm clearance required between reset button and cover.
  • Auto reset type: Automatically resets and resumes operation when temperature declines to safe level.
Certifications: UL, CQC, TUV and RoHS compliant
Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case 1 Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case 2 Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case 3 Temperature Controlled Switch Thermal Protector with 50-150℃ Range Normally Closed or Open and Bakelite Case 4
