JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life

JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life
JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life
JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life

Large Image :  JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV
Model Number: KSD-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD0.25~0.35
Packaging Details: 2000pcs / carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 10000000PCS per month year
Contact Now

JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life

Description
Life Cycle: 10000 Cycles Voltage & Current: 250V 2A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0~150 Case: Bakelite
Highlight:

Bimetallic Thermostat Thermal Fuse

,

Auto Reset Thermal Fuse

,

JUC-31F Thermal Fuse

Thermostat Auto Reset Thermal Fuse Thermal Switch JUC-31F Bimetallic Thermostat

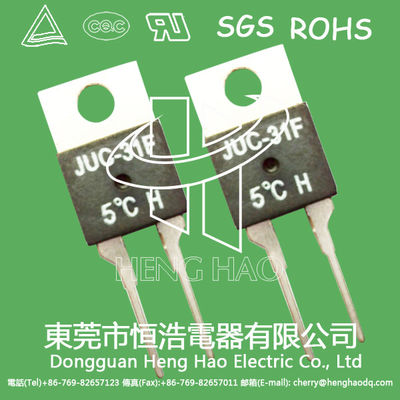

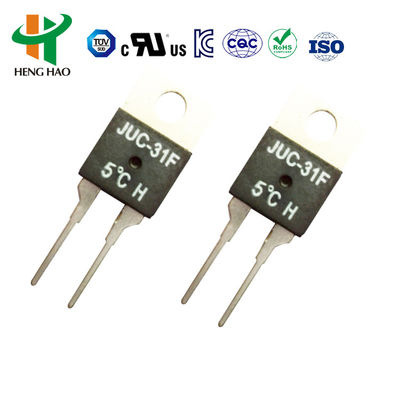

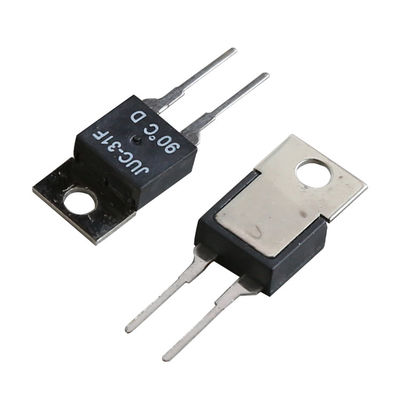

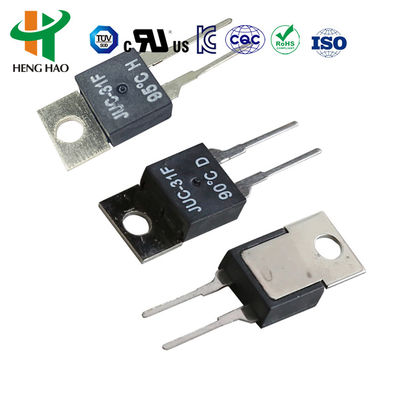

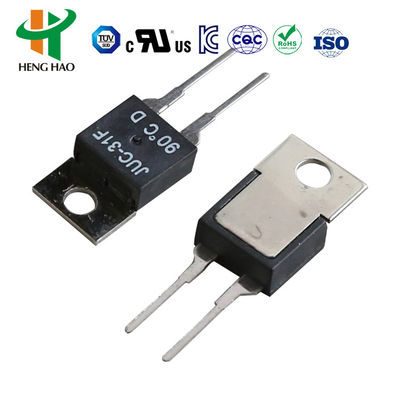

The JUC-31F is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This highly reliable product offers sensitive and accurate temperature control with compact dimensions and lightweight design for easy installation on PCB circuit boards, heat equipment, and power devices.
JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life 0
JUC-31F Temperature Controller Specifications
  • Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
  • Contact type: ID (closed) H (open)
  • Overheating temperature: 250°C
  • Contact resistance: less than 50mΩ
  • Insulation resistance: more than 100 mΩ
  • Dielectric withstand voltage: more than 1500V
  • Product life: more than 10,000 cycles
  • Weight: 1.7 g
  • Action temperature deviations: ±5°C
Operating temperature/°C Recovery temperature/°C Error Testing way
0~99 5~35 ±3°C 1°C/min
100~130 7~40 ±5°C 1°C/min
JUC-31F Applications
The JUC-31F temperature protector is ideal for electric equipment, household appliances, communication power supplies, UPS systems, module power supplies, welding equipment, aerospace instrumentation, electronic equipment, automation systems, military applications, and commercial products requiring temperature control or protection.
JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life 1 JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life 2 JUC-31F Auto Reset Thermal Switch Bimetallic Thermostat with 0~150°C Temperature Range and 10000 Cycles Life 3
17AMH Thermal Protector / Thermostat
The 17AM temperature protector is an excess-current thermal protector with compact design and quick, accurate action. Available with different lead types to meet customer requirements.
17AM Thermal Protector Specifications
  • Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact life cycles: AC-125V 15A, AC-250V 10A (10,000+ cycles); AC-125V 5A (100,000+ cycles)
  • Operating temperature range: 50-180°C
  • Temperature tolerance: ±2°C, ±3°C, ±5°C
  • Reset temperature: 10~45°C below trip temperature
  • Working times: Over 10,000 cycles
17AM Code System
17AM_XXX_A/B_5_A,B,C,D...Z
(17AMH): Product series number
(XXX): Trip off temperature in °C code
(A/B): Terminal direction (A: same direction, B: opposite direction)
(5): OFF temperature tolerance code
(A-Z): Connecting wire type
