ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact

ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact
ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact
ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact

Large Image :  ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.1~0.3/PCS
Packaging Details: 2000PCS/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 10000000PCS per month
Contact Now

ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact

Description
Life Cycle: 10000 Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open. Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Large Metal Casing
Highlight:

ST-22 SEKI Temperature Controller

,

KSD9700 Thermostat

,

BW-ABS Bimetallic Thermostat

ST-22 SEKI Temperature Controller KSD9700 Thermostat BW-ABS Bimetallic Thermostat
The H20/H21 series universal and enhanced protectors feature large metal casings composed of thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. During abnormal operation, when environment temperature reaches the set value, the bimetallic parts perform quick action to open the contact point and disconnect the circuit. When cooled to safe operation temperature, the contact point automatically closes to restore normal operation.
H20/H21 Series Thermal Protector Specifications
ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact 0
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be customized.
Life times 10000 times
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
Certifications: UL File no E487478 | CQC certificate no CQC16002142880 | TUV certificate no B160592241002
H20/H21 Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)

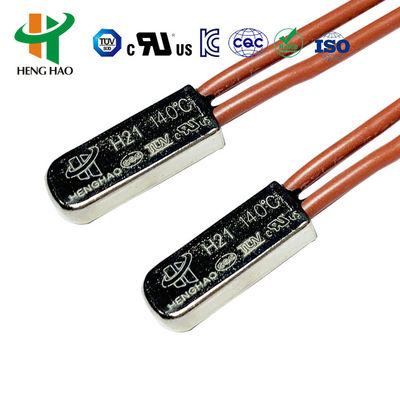

H21 Metal 18.5 7.3 3.8 AC250V 20A #16 3135

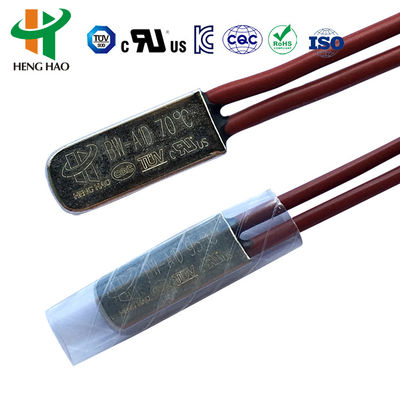

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)

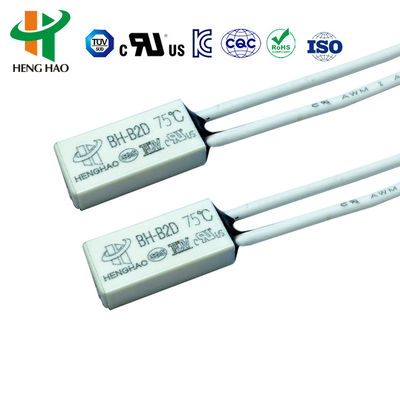

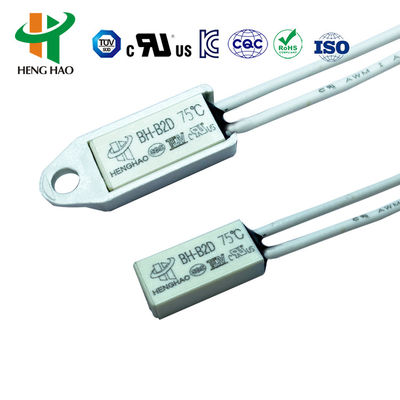

BH-B2D Plastic 15 7.1 3.8
BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
H20/H21 Series Temperature Protector Applications
The H20/H21 series is suitable for chargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heat electric appliances and instruments.
Manual Reset Type Operation
Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it jumps quickly and the movable disc disconnects. When temperature declines to a fixed point, the contact point cannot reset until reconnecting the circuit by pushing the reset button.
Note: This manual reset thermostat can reset when temperature declines 20°C after snap action by pressing the reset button (4-6 N recommended). Ensure at least 20.4mm distance between reset button and close cover for proper function.
Certifications: UL, CQC, TUV and RoHS compliant
ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact 1 ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact 2 ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact 3 ST-22 SEKI Temperature Controller Thermostat with 50-150℃ Range 10000 Life Cycles and Normally Closed Contact 4

Tag:

bimetal thermostat switch,

temperature protection switch,

bimetal thermal fuse
