Bimetallic Thermostat Thermal Protector with 0-250℃ Range Compact Design and Quick Accurate Action

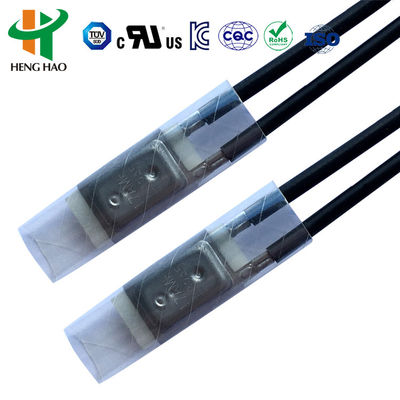

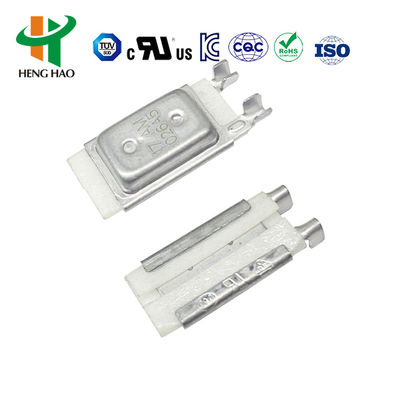

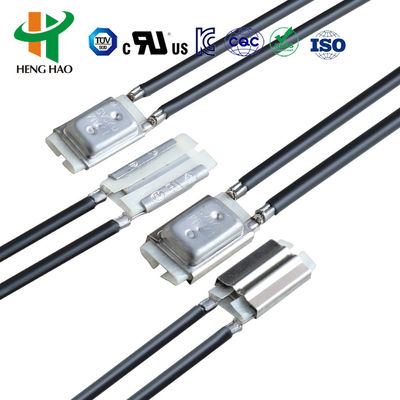

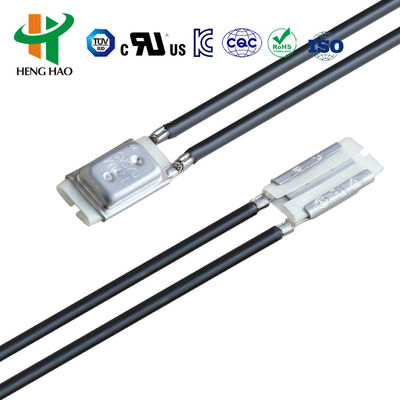

The 17AM series is an excess-current thermal protector featuring compact design and quick, accurate action. We can customize different types of leads according to customer requirements.

• AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact life cycles: AC-125V 15A, AC-250V 10A (>10,000 cycles); AC-125V 5A (>100,000 cycles)
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C, ±3°C, ±5°C
• Reset temperature: 10-45°C below trip temperature
• Working times: Over 10,000 operations

17AM XXX A/B 5 A,B,C,D...Z

• 17AMH: Product series
• XXX: Trip temperature in °C code
• A/B: Terminal direction (A=same, B=opposite)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type

The 17AM thermal protector is suitable for various applications including:

• Motors and transformers
• Fluorescent lamp components
• Laminators and sealing machines
• Lighting systems
• Household appliances

This product has UL, CQC, VDE and RoHS certification approval.
