Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset

Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset
Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset
Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset

Large Image :  Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV
Model Number: KSD-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD0.25~0.35
Packaging Details: 2000pcs / carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 10000000PCS per month year
Contact Now

Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset

Description
Life Cycle: 10000 Cycles Voltage & Current: 250V 2A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0~150 Case: Bakelite
Highlight:

JUC-31F Bimetallic Thermostat

,

KSD-01F Temperature Protector

,

JUC-31F Temperature Protector

KSD-01F Temperature Protector JUC-31F Bimetallic Thermostat
Product Overview

The JUC-31F thermostat is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This compact, lightweight device offers high reliability, sensitive accuracy, and easy installation, making it ideal for PCB circuit boards, heat equipment, and power devices.

Key Features
  • High reliability and sensitive accuracy
  • Compact size and lightweight (1.7g)
  • Easy installation on PCB circuit boards
  • International TO220/Y220 standard package
Technical Specifications
Parameter Value
Contact Load AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
Contact Type ID (closed) / H (open)
Temperature Range 0-130°C (with ±3-5°C accuracy)
Overheating Temperature 250°C
Contact Resistance <50mΩ
Insulation Resistance >100mΩ
Dielectric Withstand Voltage >1500V
Product Life >10,000 cycles
Temperature Specifications
Operating Temperature (°C) Recovery Temperature (°C) Error Testing Method
0-99 5-35 ±3°C 1°C/min
100-130 7-40 ±5°C 1°C/min
Applications

The JUC-31F thermostat is designed for temperature control and protection in:

  • Electric equipment and household appliances
  • Thermal overload protection in circuit boards
  • Power supplies (communication, switching, UPS, medical, fire)
  • Audio amplifier equipment and rechargeable devices
  • Welding equipment and aerospace instrumentation
  • Military and commercial temperature control applications

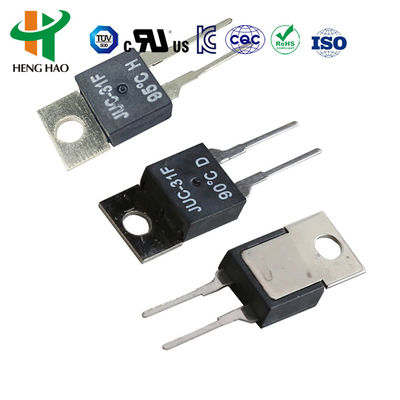

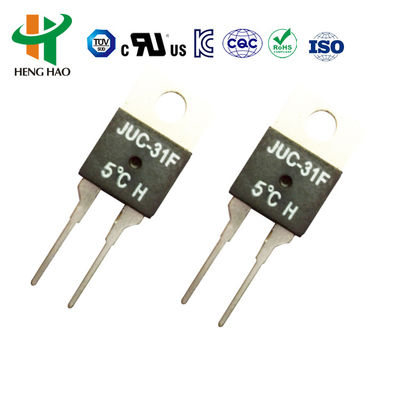

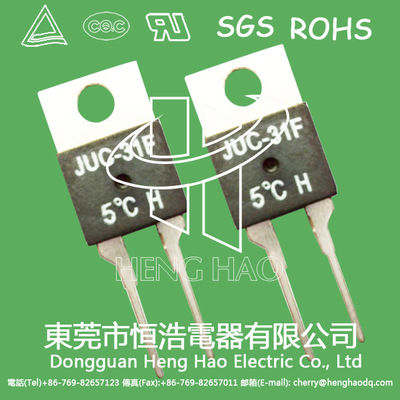

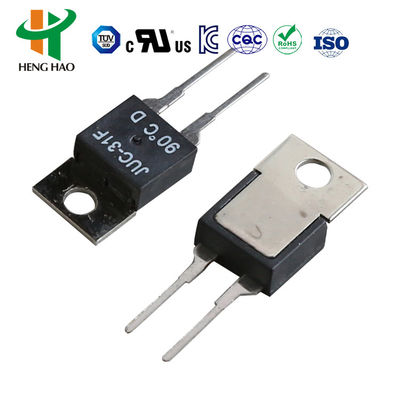

Product Images
Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset 0 Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset 1 Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset 2 Bimetallic Thermostat Temperature Protector with 0~150°C Range Normally Closed or Open Auto or Manual Reset 3
Certifications: UL, CQC, VDE, and RoHS compliant
17AMH Thermal Protector
Product Overview

The 17AMH is an excess-current thermal protector with compact design and quick, accurate action. Custom lead configurations available to meet specific requirements.

Technical Specifications
Parameter Value
Electrical Rating AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles 10,000+ cycles at rated load
Operating Temperature 50-180°C
Temperature Tolerance ±2°C to ±5°C
Reset Temperature 10-45°C below trip temperature
Product Coding System

17AMH XXX A/B 5 A,B,C,D...Z

  • 17AMH: Product series
  • XXX: Trip temperature in °C
  • A/B: Terminal direction (A=same, B=opposite)
  • 5: OFF temperature tolerance code
  • A-Z: Connecting wire type
