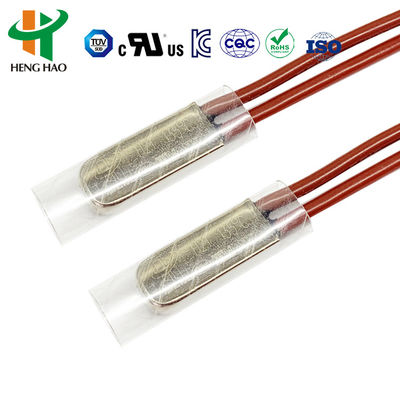

BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch

BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch
BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch
BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch

Large Image :  BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC
Model Number: bw-abs
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1~0.5PCS
Packaging Details: 2000PCS /CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PCS PER MONTH
Contact Now

BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

Temperature Controlled Switch Thermal Fuse

,

9700k Thermal Fuse

,

Auto Reset Thermal Fuse

BW-ABJ Auto Reset Thermal Fuse KSD9700 Temperature Controlled Switch
The BW & BH series thermal fuses provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, silent operation, and automatic reset functionality. The temperature and current-sensitive bimetallic components respond to abnormal conditions by changing state to either cut off or restore the circuit.

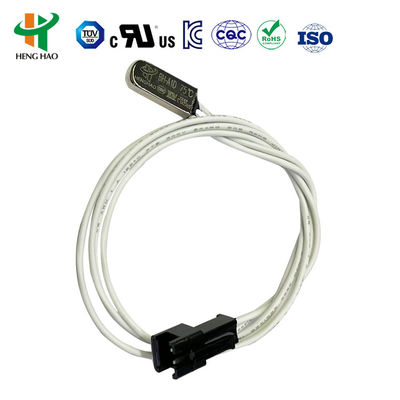

BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch 0
BH Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (customizable)
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
BH Series Thermal Protector Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 × 7.3 × 3.8 Same as H20 Same as H20
H21 Metal 20 × 8 × 4 AC250V 20A #16 3135
BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)

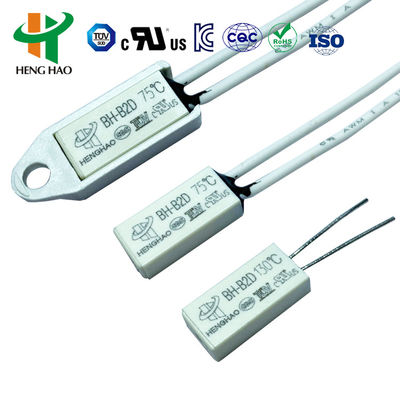

BH-B2D Plastic 15 × 7.1 × 3.8 Same as BH-A1D Same as BH-A1D

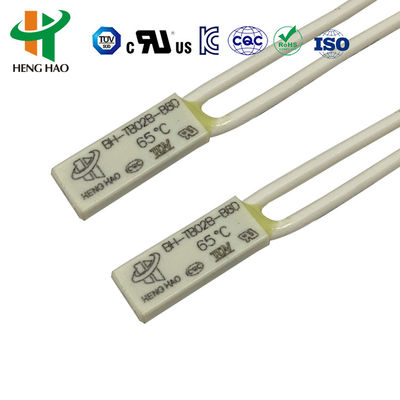

BH-TB02B-B8D Plastic 15 × 5.2 × 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch 1
BH Series Thermostat Applications
These reliable security protectors are widely used in:
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Portable power tools
  • Various electric appliances
Enforced types (3.5MPa pressure rating) are suitable for plastic-coated motor installations.
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
H20/H21 Series Thermal Protector Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min (no breakdown or flashover)
All products have UL, CQC, TUV and RoHS certification approval.
BW-ABJ Auto Reset Thermal Fuse with Bakelite Case for Over-Current Protection and Normally Closed/Open Switch 2
