KSD301 Bimetal Thermostat Temperature Controlled Switch with Normally Closed or Open Auto or Manual Reset UL/CQC/TUV/RoHS Certified

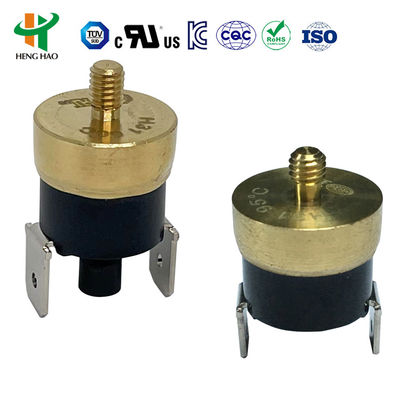

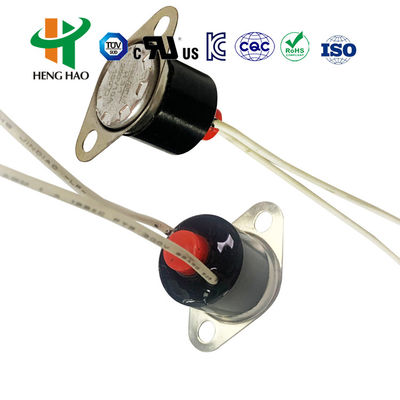

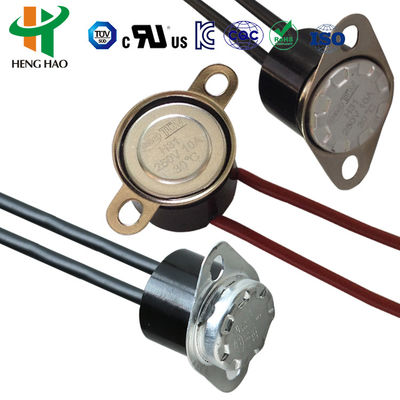

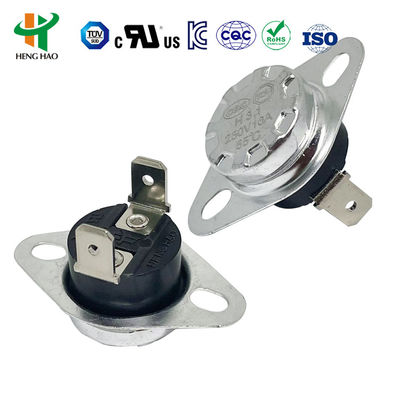

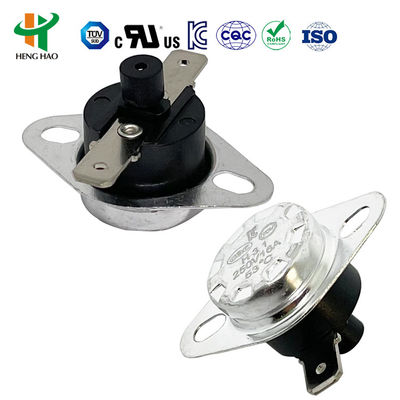

Large Image : KSD301 Bimetal Thermostat Temperature Controlled Switch with Normally Closed or Open Auto or Manual Reset UL/CQC/TUV/RoHS Certified

Product Details:

Place of Origin:	DONGGUAN,CHINA
Brand Name:	HENGHAO
Certification:	UL CQC TUV ROHS
Model Number:	H31

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	US$0.2-0.3 PER PC
Packaging Details:	1650 PCS PER CARTON
Delivery Time:	7-10 WORKING DAYS
Payment Terms:	TT FOB SZ
Supply Ability:	1000000PCS PER MONTH

Contact Now

KSD301 Bimetal Thermostat Temperature Controlled Switch with Normally Closed or Open Auto or Manual Reset UL/CQC/TUV/RoHS Certified

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃
Highlight:	250V16A Temperature Controlled Switch , KSD301 Temperature Controlled Switch

Temperature Controlled Switch KSD301 250V16A Temperature Controller

The KSD series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.

KSD301 Thermostat Specifications

Parameter	Specification
Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery and action temperature difference	0 to 25 degrees, or according to client's request
Temperature deviation	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Mounting bracket	Two kinds: movable or immovable
Terminal type	a. Terminal type: 187series of 4.80.5mm and 4.80.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
House	plastic or ceramic
Temperature sensor face	aluminum cap or copper head

KSD301 Auto Reset vs Manual Reset Types

Manual reset type: Uses bimetallic strip temperature sensing. Requires manual reset button press after temperature drops 20°C from action point (4-6N force recommended). Minimum 20.4mm clearance required between reset button and cover.
Auto reset type: Uses bimetallic strip temperature sensing. Automatically resets when temperature drops to specified point without manual intervention.

KSD301 Bimetal Thermostat Applications

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃±5℃	5℃±5℃	95℃±5℃	80℃±5℃	205℃±5℃	175℃±10℃
-15℃±5℃	5℃±5℃	100℃±5℃	80℃±10℃	210℃±5℃	180℃±10℃
Custom temperature settings available according to client requirements

Product holds UL, CQC, TUV and RoHS certifications. KSD301 Bimetal Thermostat Temperature Controlled Switch with Normally Closed or Open Auto or Manual Reset UL/CQC/TUV/RoHS Certified 4

For more information, visit: KSD Thermostat or Thermostat Manufacturer
