KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Large Image :  KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

Temperature Controlled Switch KSD301

,

KSD301 Temperature Controller

KSD301 Temperature Controlled Switch

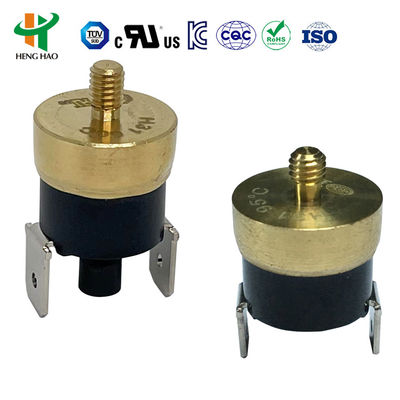

KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 0
The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
Technical Specifications
Parameter Value
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Bracket Movable or immovable
Terminal Type 187 series (4.8*0.5mm, 4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head

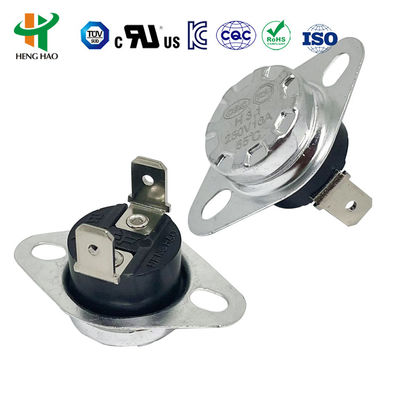

KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 1
Reset Types
Manual Reset Type: Requires physical reset button activation after temperature drops approximately 20°C from trip point. Requires 4-6N force for reset.
Auto Reset Type: Automatically resets when temperature drops to specified level without manual intervention.
Applications
Widely used in household appliances including coffee pots, laminators, steam irons, warmers, water dispensers, and other temperature control applications.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
Note: Custom temperature settings available upon request.
Certifications
UL, CQC, TUV and RoHS certified.

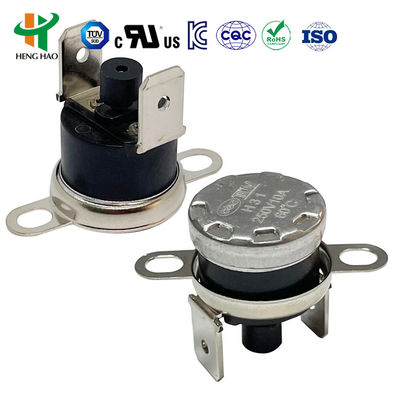

KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 2
