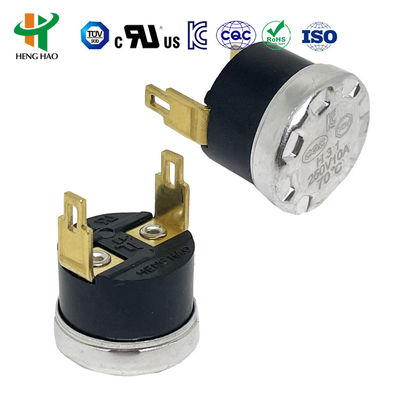

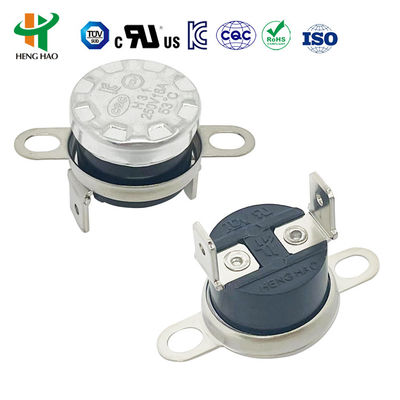

KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact

KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact
KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact
KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact

Large Image :  KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

KSD301 Thermal Fuse

,

Auto Reset Thermal Fuse KSD301

,

Thermal Fuse KSD301

Temperature Switch KSD301 Thermal Switch KSD301 Auto Reset Thermal Fuse
KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact 0
The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates the internal mechanism to open or close the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, extended service life, and reduced radio interference.
KSD302 Thermostat Specifications
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Two kinds: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact 1
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type: Uses bimetallic strip temperature sensing. When temperature reaches the action range, the disc snaps open. Requires manual reset button press (4-6N force) after temperature drops 20°C from action point. Ensure minimum 20.4mm clearance between reset button and cover.
Auto Reset Type: Uses bimetallic strip temperature sensing. Automatically resets when temperature drops to specified point without manual intervention.
Temperature Settings Reference Table
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
Custom temperature settings available according to client requirements
This product holds UL, CQC, TUV and RoHS certifications.
KSD301 Bimetal Thermostat Temperature Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact 2
