Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset
Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset
Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Large Image :  Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: BW-ABS
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: USD 0.15~0.3PCS
Packaging Details: 2000PCS
Delivery Time: 10~15PCS
Payment Terms: T/T
Supply Ability: 1000000PCS
Contact Now

Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Rese
Temperature Range: 50-150℃ Case: Plastic
Highlight:

KSD9700 Thermal Cut Off Switch

,

KSD9700 Thermal Protector

,

BW-ABS Thermal Cut Off Switch

Snap-Action Thermostat BW-ABS KSD9700 Thermal Cut Off Switch

BW & BH series protectors offer reliable over-current and over-temperature protection with sealed construction, small internal resistance, silent operation, and automatic reset functionality. The temperature and current-sensitive bimetal components change state to cut off or restore circuit connection in response to abnormal conditions.

Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 0
BW-ABJ Series Specifications
Parameter Specification
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C steps
Reset temperature 2/3 of action temperature (±15°C) or custom requirements
Life cycles 10,000 operations
Dimensions L15mm × W7.1mm × H3.8mm
Lead wire #22 3266, 70mm length (customizable)
Certifications UL E487478 | CQC16002142880 | TUV B160592241002
BW-ABJ Series Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire

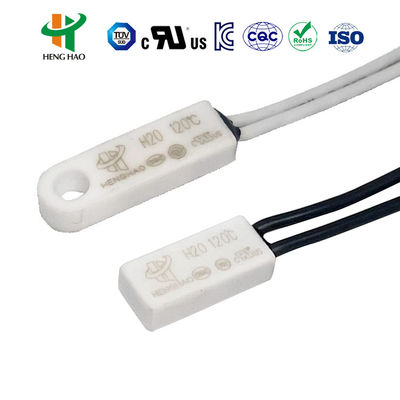

H20 Plastic 18.5 × 8 × 4 DC-12V 12A max; DC-24V 10A max; AC-125V 8A max; AC-250V 10A max #20 3135, 70mm length (customizable)
H21 Metal 18.5 × 7.3 × 3.8 AC250V 20A #16 3135
BH-A1D Metal 15 × 6.6 × 3.2 DC-12V 12A max; DC-24V 10A max; AC-125V 8A max; AC-250V #20 3135, #22 3266/3135, 70mm length (customizable)
Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 1
BH Series Applications

BH series thermal protectors serve as reliable security devices for 1.5HP motors, lighting systems, welding machines, power supplies, battery packs, power tools, and various electrical equipment. The 3.5MPa pressure-resistant models are ideal for plastic-coated motor installations.

Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
H20/H21 Series Specifications
Parameter Specification
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min (no breakdown or flashover)
Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 2 Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 3 Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 4 Snap-Action Thermostat Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 5
Certified to UL, CQC, TUV and RoHS standards.
