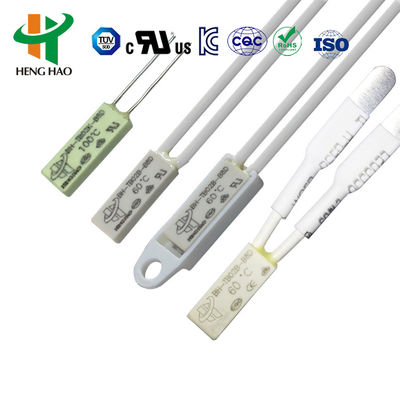

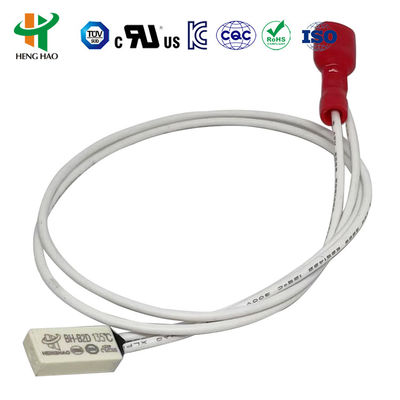

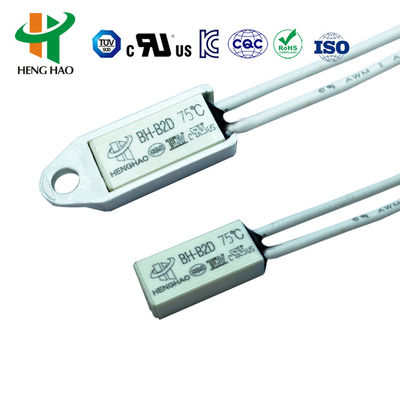

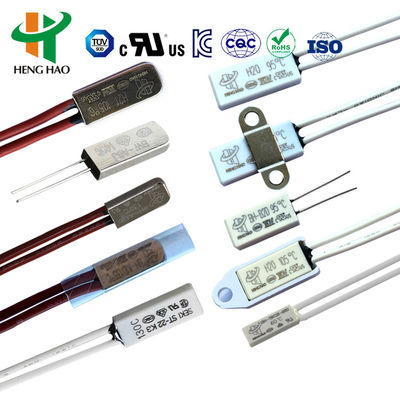

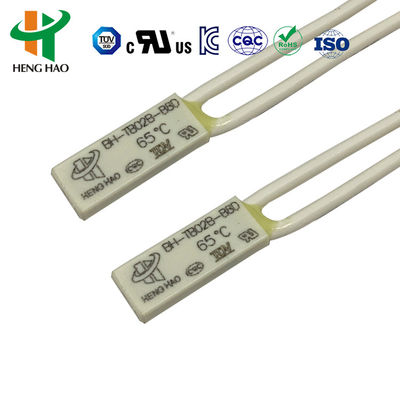

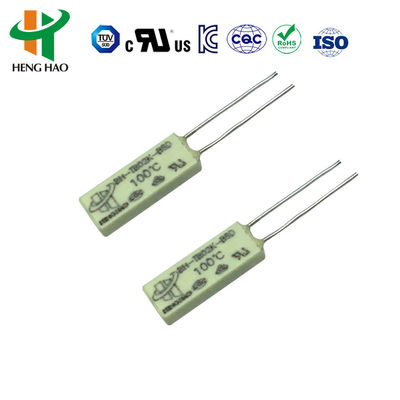

KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector

KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector
KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector
KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector

Large Image :  KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: BW-ABS
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: USD 0.15~0.3PCS
Packaging Details: 2000PCS
Delivery Time: 10~15PCS
Payment Terms: T/T
Supply Ability: 1000000PCS
Contact Now

KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Rese
Temperature Range: 50-150℃ Case: Plastic
Highlight:

KSD9700 Temperature Protector

Thermal Cut Off Switch KSD9700 Thermal Protector
BW & BH series thermal protectors offer reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The temperature and current-sensitive bimetallic components change state to cut off or restore circuit connection in response to abnormal conditions.
KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector 0
BW-ABJ Series Thermostat Specifications
Specification Details
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C steps
Reset temperature 2/3 of action temperature (±15°C tolerance) or customized
Life times 10,000 cycles
Size L15mm × W7.1mm × H3.8mm
Lead wire #22 3266, 70mm length (customizable)
Certifications UL E487478, CQC16002142880, TUV B160592241002
BW-ABJ Series Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V 12A max; DC-24V 10A max; AC-125V 8A max; AC-250V 10A max #20 3135, 70mm length (customizable)
H21 Metal 18.5 × 7.3 × 3.8 Same as H20 Same as H20
H21 Metal 20 × 8 × 4 AC250V 20A #16 3135
KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector 1
BH Series Applications
BH series thermal protectors serve as reliable security devices for:
  • 1.5HP motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Portable power tools
  • Various electric appliances
Temperature Options
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
H20/H21 Series Specifications
Parameter Specification
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min (no breakdown or flashover)
Certifications: UL, CQC, TUV, and RoHS compliant
KSD9700 Thermal Cut Off Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset Thermal Protector 2
