Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch

Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch
Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch
Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch

Large Image :  Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month year
Contact Now

Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Bakelite
Highlight:

Temperature Controlled Switch

,

Kw9700 Temperature Switch

,

KSD9700 Temperature Switch

Temperature Controlled Switch KSD9700 Temperature Controller Kw9700 Temperature Switch
Temperature Controlled Switch with 50-150℃ Range Normally Closed or Open and Bakelite Case Thermal Protection Switch 0
KSD9700 Temperature Protector Principle and Structure
H20, H21 series universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.
H20, H21 Series Thermal Protector Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement.
Life times 10000 times
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover.
UL File no E487478
CQC certificate no CQC16002142880
TUV certificate no B160592241002
KSD9700 Temperature Controller Dimension
Model Case Length(mm) Width(mm) High(mm) Vol.&Current Lead wire

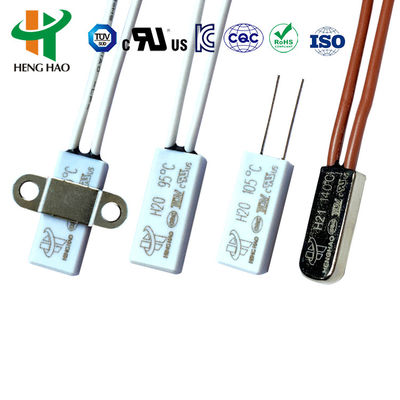

H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm, or according to customer's require
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135

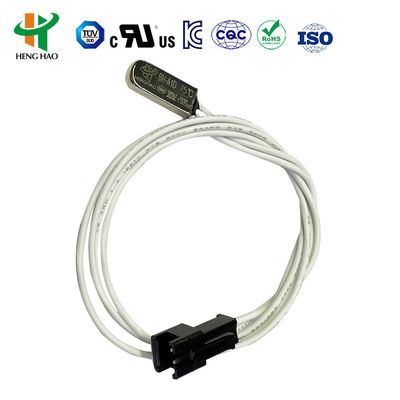

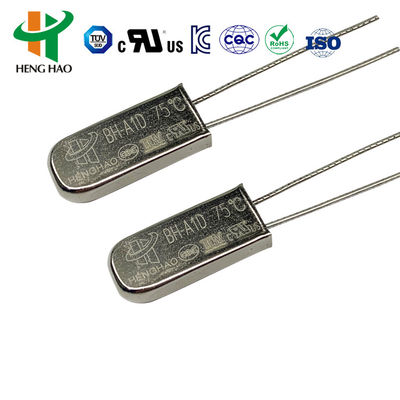

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm, or according to customer's require

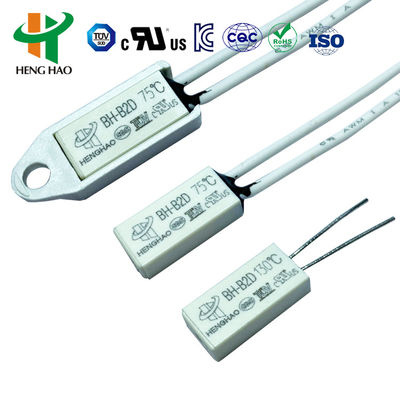

BH-B2D Plastic 15 7.1 3.8

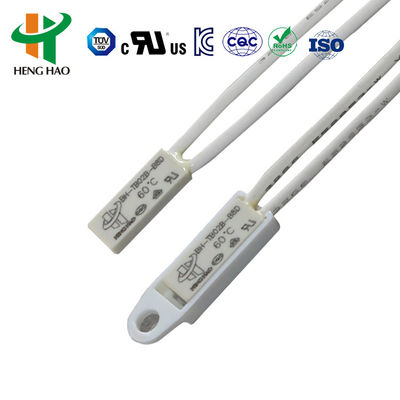

BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or according to customer's require
H20, H21 Series Temperature Protector Applications
H20, H21 series is applicable to chargeable battery, ballast, massager, micro motor, transformer, electric tools, heat electric appliance and instrument etc.
  • Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button.
  • Auto reset type: When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
The product has UL, CQC, TUV and RoHS certification approval.
