SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection

SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection
SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection
SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection

Large Image :  SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: BW-ABS
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: USD 0.15~0.3PCS
Packaging Details: 2000PCS
Delivery Time: 10~15PCS
Payment Terms: T/T
Supply Ability: 1000000PCS
Contact Now

SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Rese
Temperature Range: 50-150℃ Case: Plastic
Highlight:

ST-22 Temperature Controller

,

SEKI ST-22 Thermal Switch

,

SEKI ST-22 Temperature Switch

SEKI ST-22 Temperature Controller
The SEKI ST-22 Temperature Switch is a high-performance thermal protector designed for reliable circuit protection against over-current and over-temperature conditions. Featuring a sealed construction with small internal resistance and automatic reset capability, this switch operates silently and efficiently.

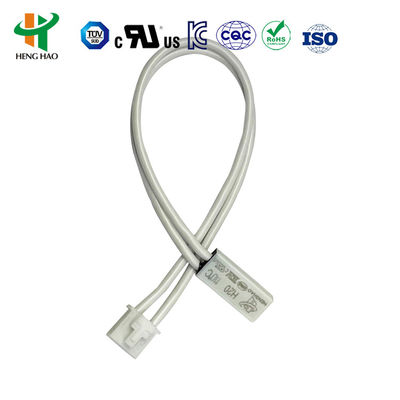

SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection 0 SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection 1
ST-22 Thermal Protector Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 cycles
Dimensions L15mm × W7.1mm × H3.8mm
Lead wire #22 3266, end half tripping, length 70mm (customizable)
Certifications UL File no: E487478
CQC no: CQC16002142880
TUV no: B160592241002
ST-22 Series Dimensions
Model Case Length (mm) Width (mm) Height (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 7.3 3.8 AC250V 20A #16 3135
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
Applications
The ST-22 thermal protector serves as an effective security device for various applications including:
  • 1.5 horsepower motors
  • Inverter welding machines
  • Switch power supplies
  • Fluorescent lamp ballasts
  • Electric appliances and equipment
  • Plastic coated motors (3.5MPa pressure-resistant models available)
Operating Principle
The H20/H21 series protectors feature a thermal conductive metal casing with bimetallic components welded to silver alloy contact points. During abnormal operation, rising temperatures cause the bimetallic components to quickly open the circuit. When temperatures return to safe levels, the contacts automatically close to restore normal operation.
SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection 2 SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection 3 SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection 4 SEKI ST-22 Temperature Switch Thermal Protector with 50-150℃ Range Plastic Case and Over-Current Protection 5
Certified to UL, CQC, TUV, and RoHS standards.
