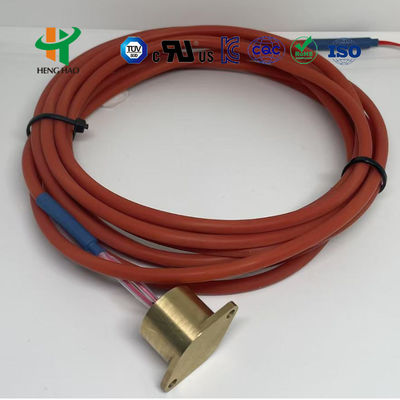

KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing

KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing
KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing
KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing

Large Image :  KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

Metal Case KSD301 Bimetal Thermostat

,

UL/CQC/TUV/RoHS Certified Thermal Switch

,

Plastic or Ceramic Housing Temperature Controller

Thermal Switch KSD301 Temperature Switch KSD302 Temperature Controller KSD301-R
Temperature Controlled Switch Temperature Protector Thermal Protector
Product Overview

The main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on or off the circuit finally. The main characteristics are the fixation of working temperature, the reliable snap action, less flashover, longer working life and less radio interference.

KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing 0 KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing 1
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and Action Temperature Difference 0 to 25 degrees, or according to client's request
Temperature Deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life Cycle ≥100,000 times
Contact Type Normally closed or Normally open
Mounting Bracket Two kinds: movable or immovable
Terminal Type a. Terminal type: 187 series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
Reset Type Comparison
Manual Reset Type
  • Temperature sensing components consist of bimetallic strip
  • When temperature reaches action range, it jumps quickly and movable disc disconnects
  • Contact point cannot reset automatically - requires manual reset button
  • Can reset when temperature declines 20°C after snap action by pressing reset button
  • Recommended reset force: 4-6 N (avoid excessive strength)
  • Minimum distance between reset button and close cover: 20.4mm
Auto Reset Type
  • Temperature sensing components consist of bimetallic strip
  • When temperature reaches action range, it jumps quickly and movable disc disconnects
  • Contact point automatically resets when temperature declines to fixed point
  • Automatically starts working without manual intervention
Applications

Learn more about KSD301 bimetal thermostat applications

KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing 2
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
35℃±5℃ 20℃±5℃ 145℃±5℃ 125℃±10℃ 255℃±5℃ 225℃±10℃
40℃±5℃ 25℃±5℃ 150℃±5℃ 130℃±10℃ 260℃±5℃ 230℃±10℃
45℃±5℃ 30℃±5℃ 155℃±5℃ 130℃±10℃ 265℃±5℃ 235℃±10℃
50℃±5℃ 35℃±5℃ 160℃±5℃ 135℃±10℃ 270℃±5℃ 240℃±10℃
55℃±5℃ 40℃±5℃ 165℃±5℃ 140℃±10℃ 275℃±5℃ 245℃±10℃
60℃±5℃ 45℃±5℃ 170℃±5℃ 145℃±10℃ 280℃±5℃ 250℃±10℃
65℃±5℃ 50℃±5℃ 175℃±5℃ 150℃±10℃ 285℃±5℃ 255℃±10℃
70℃±5℃ 55℃±5℃ 180℃±5℃ 155℃±10℃ 290℃±5℃ 260℃±10℃
75℃±5℃ 60℃±5℃ 185℃±5℃ 155℃±10℃ 295℃±5℃ 265℃±10℃
80℃±5℃ 65℃±5℃ 190℃±5℃ 160℃±10℃ 300℃±5℃ 270℃±10℃
85℃±5℃ 70℃±5℃ 195℃±5℃ 165℃±10℃ Or according to client's request
90℃±5℃ 75℃±5℃ 200℃±5℃ 170℃±10℃
The product has UL, CQC, TUV and RoHS certification approval.
KSD301 Bimetal Thermostat Thermal Switch with Metal Case UL/CQC/TUV/RoHS Certified and Plastic or Ceramic Housing 3
