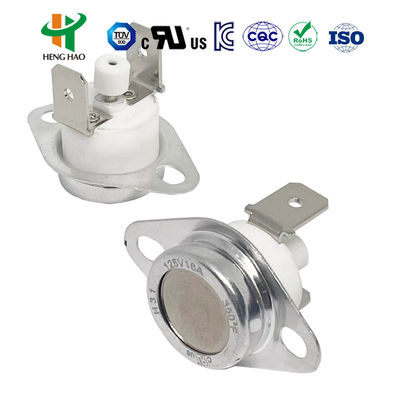

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances

Large Image :  KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

100000 cycles Bimetallic Thermostat

,

250V 16A Temperature Protector

,

0-250℃ KSD301 Thermostat

Temperature Protector KSD301 KSD301 Thermostat KSD302 Bimetallic Thermostat KSD303
The KSD series thermostat operates on the principle of bimetallic discs that snap into action when sensing temperature changes. This snap action activates the contacts through the internal structure, ultimately opening or closing the circuit. Key characteristics include fixed working temperature, reliable snap action, minimal flashover, extended working life, and reduced radio interference.
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and Action Temperature Difference 0 to 25 degrees, or according to client's request
Temperature Deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life Cycle ≥100000 times
Contact Type Normally closed or Normally open
Mounting Bracket Two kinds: movable or immovable
Terminal Type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type: Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it snaps quickly and the movable disc disconnects. When temperature declines to a fixed point, the contact cannot reset until the reset button is pressed to reconnect the circuit.
Important Notes: 1. This manual reset thermostat can reset when temperature declines 20°C after snap action by pressing the reset button. Apply 4~6 N force; avoid excessive strength. 2. To ensure normal function, the distance between reset button and close cover should not be less than 20.4mm.
Auto Reset Type: Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it snaps quickly and the movable disc disconnects. When temperature declines to a fixed point, the contact automatically resets and resumes operation.
KSD302 Thermostat Applications
Used for temperature control in household electric appliances including coffee pots, laminators, wind warmers, water dispensers, and various thermostat applications.
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
35℃±5℃ 20℃±5℃ 145℃±5℃ 125℃±10℃ 255℃±5℃ 225℃±10℃
40℃±5℃ 25℃±5℃ 150℃±5℃ 130℃±10℃ 260℃±5℃ 230℃±10℃
45℃±5℃ 30℃±5℃ 155℃±5℃ 130℃±10℃ 265℃±5℃ 235℃±10℃
50℃±5℃ 35℃±5℃ 160℃±5℃ 135℃±10℃ 270℃±5℃ 240℃±10℃
55℃±5℃ 40℃±5℃ 165℃±5℃ 140℃±10℃ 275℃±5℃ 245℃±10℃
60℃±5℃ 45℃±5℃ 170℃±5℃ 145℃±10℃ 280℃±5℃ 250℃±10℃
65℃±5℃ 50℃±5℃ 175℃±5℃ 150℃±10℃ 285℃±5℃ 255℃±10℃
70℃±5℃ 55℃±5℃ 180℃±5℃ 155℃±10℃ 290℃±5℃ 260℃±10℃
75℃±5℃ 60℃±5℃ 185℃±5℃ 155℃±10℃ 295℃±5℃ 265℃±10℃
80℃±5℃ 65℃±5℃ 190℃±5℃ 160℃±10℃ 300℃±5℃ 270℃±10℃
85℃±5℃ 70℃±5℃ 195℃±5℃ 165℃±10℃ Or according to client's request
90℃±5℃ 75℃±5℃ 200℃±5℃ 170℃±10℃
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Household Appliances 1
The product has UL, CQC, TUV and RoHS certification approval.
