KSD301 Bimetal Thermostat with Metal Case UL/CQC/TUV/RoHS Certified and 100000 Cycles Life

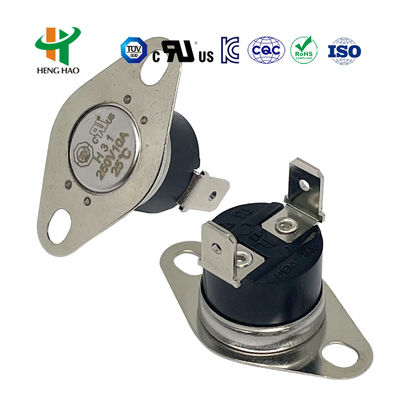

Large Image : KSD301 Bimetal Thermostat with Metal Case UL/CQC/TUV/RoHS Certified and 100000 Cycles Life

Product Details:

Place of Origin:	CHINA
Brand Name:	HENGHAO
Certification:	UL
Model Number:	H31

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	USD 0.3~0.5PCS
Packaging Details:	2000PCS/CARTON
Delivery Time:	10~15 WORKDAYS
Payment Terms:	T/T
Supply Ability:	1000000PCS PER MONTH

Contact Now

KSD301 Bimetal Thermostat with Metal Case UL/CQC/TUV/RoHS Certified and 100000 Cycles Life

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃	Case:	Metal
Highlight:	Metal Case KSD301 Bimetal Thermostat , UL/CQC/TUV/RoHS Certified KSD301 Temperature Protector , 100000 Cycles KSD301 Thermal Switch

KSD301 Temperature Protector H31 Bimetallic Thermostat KSD302 Thermostat KSD301

The KSD series thermostat operates on the principle of bimetallic discs that snap into action when temperature changes occur. This snap action activates the internal contacts, either opening or closing the circuit. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended service life, and reduced radio interference.

KSD302 Thermostat Specifications

Parameter	Specification
Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery and action temperature difference	0 to 25 degrees, or according to client's request
Temperature deviation	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Mounting bracket	Two kinds: movable or immovable
Terminal type	a. Terminal type: 187series of 4.80.5mm and 4.80.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
House	Plastic or ceramic
Temperature sensor face	Aluminum cap or copper head

KSD301 Auto Reset vs Manual Reset Types

Manual Reset Type: Features a bimetallic strip that disconnects at the action temperature. Requires manual reset via button press after temperature decreases by approximately 20°C. Requires 4-6N force for reset. Minimum 20.4mm clearance required between reset button and cover for proper operation.

Auto Reset Type: Uses a bimetallic strip that automatically reconnects when temperature decreases to the reset point, without manual intervention.

KSD302 Bimetal Thermostat Temperature Settings

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃±5℃	5℃±5℃	95℃±5℃	80℃±5℃	205℃±5℃	175℃±10℃
-15℃±5℃	5℃±5℃	100℃±5℃	80℃±10℃	210℃±5℃	180℃±10℃
-10℃±5℃	5℃±5℃	105℃±5℃	85℃±10℃	215℃±5℃	185℃±10℃
0℃±5℃	-10℃±5℃	110℃±5℃	90℃±10℃	220℃±5℃	190℃±10℃
5℃±5℃	-5℃±5℃	115℃±5℃	95℃±10℃	225℃±5℃	195℃±10℃
10℃±5℃	0℃±5℃	120℃±5℃	100℃±10℃	230℃±5℃	200℃±10℃
15℃±5℃	5℃±5℃	125℃±5℃	105℃±10℃	235℃±5℃	205℃±10℃
20℃±5℃	5℃±5℃	130℃±5℃	110℃±10℃	240℃±5℃	210℃±10℃
25℃±5℃	10℃±5℃	135℃±5℃	115℃±10℃	245℃±5℃	215℃±10℃
30℃±5℃	15℃±5℃	140℃±5℃	120℃±10℃	250℃±5℃	220℃±10℃

Custom temperature settings available according to client requirements.

This product holds UL, CQC, TUV and RoHS certifications.
