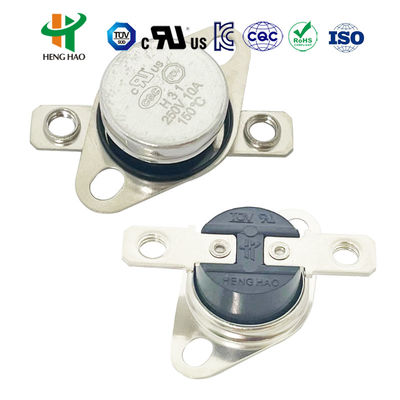

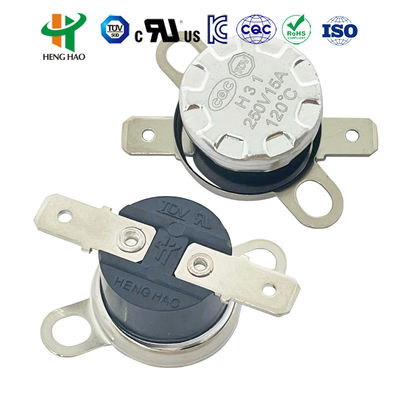

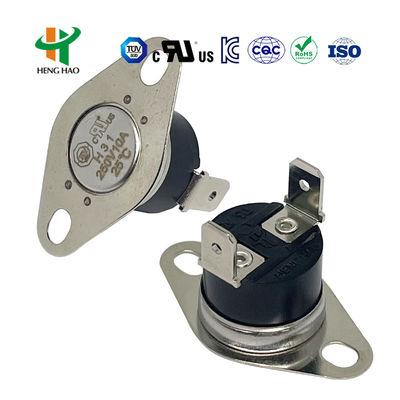

KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset

KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset
KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset
KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset

Large Image :  KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

0-250℃ Bimetallic Thermostat

,

Normally Closed or Open KSD301 Thermostat

,

Auto or Manual Reset Temperature Controller

H31 250V16A KSD301 Thermostat Bimetallic Thermostat KSD301 Temperature Controller
KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset 0 KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset 1
The main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.
KSD302 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open

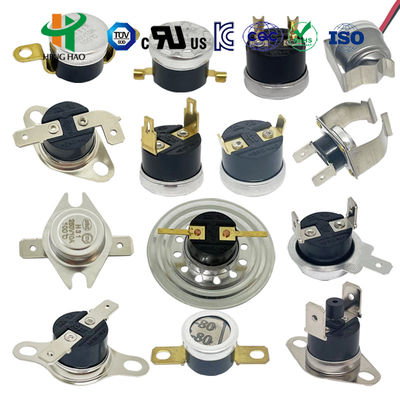

Two kinds of mounting bracket movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional

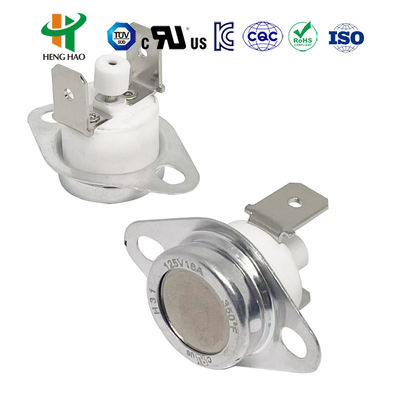

House plastic or ceramic

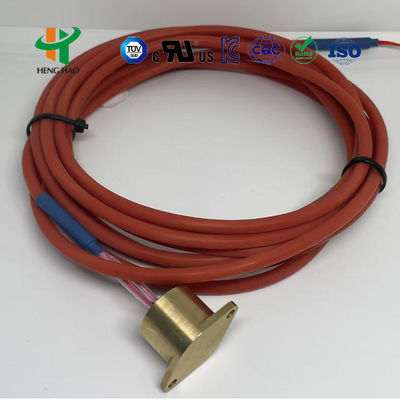

Temperature sensor face aluminum cap or copper head
KSD301 Bimetallic Thermostat 0-250℃ Temperature Controller with Normally Closed or Open and Auto or Manual Reset 2
KSD301 Difference Between Auto Reset Type and Manual Reset Type
Manual Reset Type
Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset.
  • This type of manual reset thermostat can reset when the temperature declines 20°C after snap action by pressing the reset button. And 4~6 N will be advisable; please don't use too much strength.
  • To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm.
Auto Reset Type
Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
KSD302 Bimetal Thermostat Application Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
35℃±5℃ 20℃±5℃ 145℃±5℃ 125℃±10℃ 255℃±5℃ 225℃±10℃
40℃±5℃ 25℃±5℃ 150℃±5℃ 130℃±10℃ 260℃±5℃ 230℃±10℃
45℃±5℃ 30℃±5℃ 155℃±5℃ 130℃±10℃ 265℃±5℃ 235℃±10℃
50℃±5℃ 35℃±5℃ 160℃±5℃ 135℃±10℃ 270℃±5℃ 240℃±10℃
55℃±5℃ 40℃±5℃ 165℃±5℃ 140℃±10℃ 275℃±5℃ 245℃±10℃
60℃±5℃ 45℃±5℃ 170℃±5℃ 145℃±10℃ 280℃±5℃ 250℃±10℃
65℃±5℃ 50℃±5℃ 175℃±5℃ 150℃±10℃ 285℃±5℃ 255℃±10℃
70℃±5℃ 55℃±5℃ 180℃±5℃ 155℃±10℃ 290℃±5℃ 260℃±10℃
75℃±5℃ 60℃±5℃ 185℃±5℃ 155℃±10℃ 295℃±5℃ 265℃±10℃
80℃±5℃ 65℃±5℃ 190℃±5℃ 160℃±10℃ 300℃±5℃ 270℃±10℃
85℃±5℃ 70℃±5℃ 195℃±5℃ 165℃±10℃ Or according to client's request
90℃±5℃ 75℃±5℃ 200℃±5℃ 170℃±10℃
The product has UL, CQC, TUV and RoHS certification approval.
