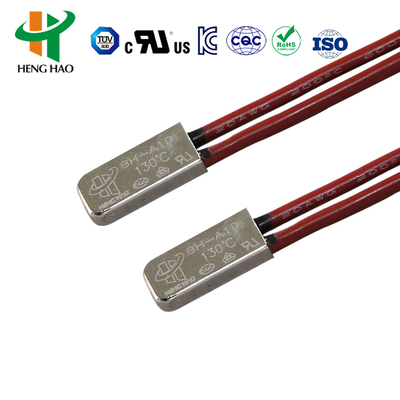

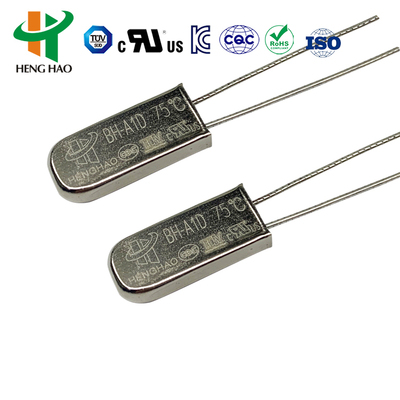

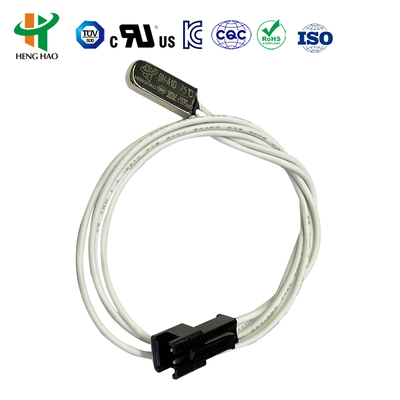

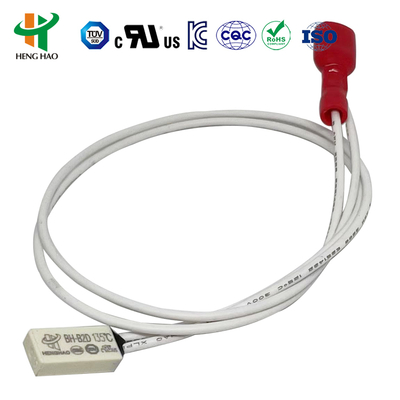

Auto Reset Thermal Fuse Bimetallic Thermostat with Normally Closed or Normally Open Contacts and Small Internal Resistance for Noiseless Operation

BW & BH series thermal protectors provide reliable protection against over-current and over-temperature conditions. These devices are firmly sealed, feature small internal resistance, operate silently, and reset automatically. When current flows through the temperature-sensitive bimetallic element, abnormal conditions cause the bimetal to change state, either opening or closing the circuit as required.

BH series protectors offer enhanced safety compared to standard protectors, as they eliminate temperature effect lag during sudden high-current conditions.

BH series thermal protectors are effective, reliable security protector and alarm devices, widely used in various applications including:

These protectors prevent damage caused by over-current and over-heating resulting from abnormal operating conditions. Enforced types capable of withstanding pressures up to 3.5MPa are suitable for built-in installation in plastic coated motors.

H20 and H21 series universal and enhanced protectors feature large metal casings and are composed of thermal conductive metal casing, bimetallic parts welded with silver alloy contact points, conductive brackets, insulation fixation stands, fixed contact strips, and heat resistance cables.

During abnormal operation, when environmental temperature increases to the set value, the bimetallic components perform quick action, opening the contact points and disconnecting the circuit. When the device cools to safe operating temperature, the contact points automatically close and normal operation resumes.

H20 and H21 series protectors are suitable for use in:

Product certifications: UL, CQC, TUV and RoHS certification approval.
