Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator

Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator
Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator

Large Image :  Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator

Product Details:
Place of Origin: Guangdong, China
Brand Name: HENGHAO
Model Number: 3950
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.50-3
Contact Now

Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator

Description
Mounting Type: Holder Shell Material: Steal Head
B Value: B25/85 Temperature Range: -40-120
Accuracy: 1%~5% Probe Material: Epoxy, Plastic Tube, Metal
Resistance: 1~100k Ohms Wire Material: 2 Wire 3 Wire
Nominal Resistance: 5K,8K,10K,15K To 100K R25 Permissible Variance: ±1,±2, ±3, ±5, ±10
Material Coefficient: 2500~5000K B25/50 Variance: ±1,±2
Dissipation Coefficient: ≥0.8mw/℃ Thermal Time Constant: ≤25S
Rated Power: 50mw
Highlight:

B25/85 NTC Thermistor Temperature Sensor

,

2 Wire NTC Temperature Sensor

,

3 Wire Thermistor Temperature Sensor

Steel Head 10K NTC Thermometer - 10K Thermistor 3950K/3977K B25/85 NTC Thermal Sensor
High-precision NTC temperature sensor with steel head construction, designed for accurate temperature measurement across various industrial applications.
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25℃±0.05℃
R25 Permissible variance (%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 or B25/85 (material coefficient / thermal-sensitivity index) 2500~5000K Constant temperature 25℃±0.05℃ / 85℃±0.05℃
B25/50 Value permissible variance (%) ±1, ±2 Constant temperature 25℃±0.05℃ / 50℃±0.05℃
∫ (dissipation coefficient) ≥0.8mw/℃ Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -30℃~+120℃
Pn (rated power) 50mw Within working temperature
Case and head Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
Terminal Can be riveted according to the requirements of various terminals

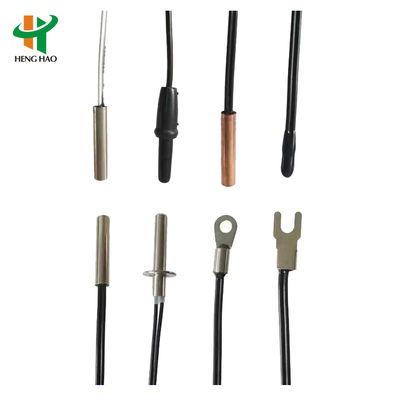

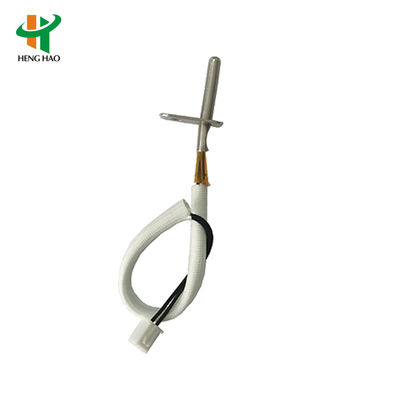

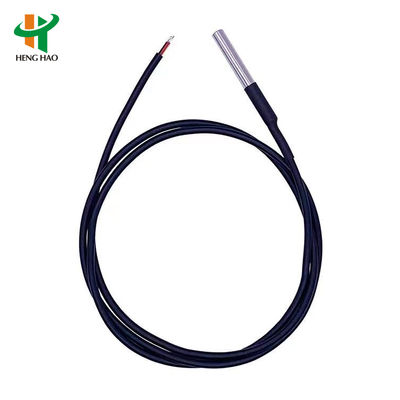

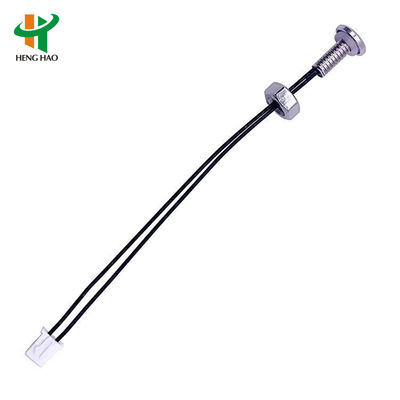

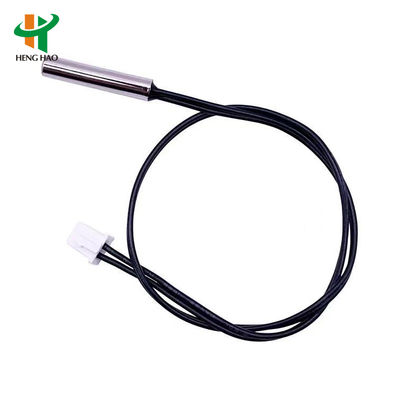

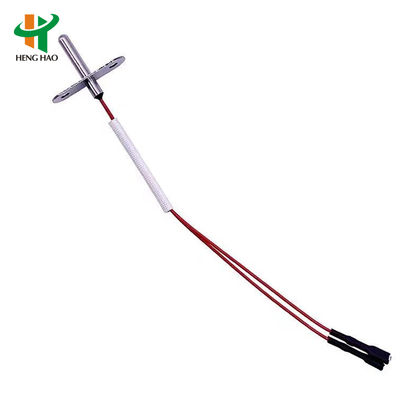

Product Images
Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator 0
Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator 1
Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator 2
