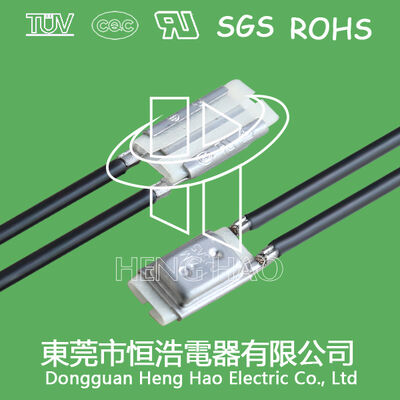

17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch

17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch
17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch

Large Image :  17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.26
Contact Now

17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch

Description
Model Number: 17AMH Type: Temperature Sensor
Material: Steel Plastic Life Cycle: 10000 Times
Voltage Current: 250V 10A Temperature Range: 50-180°C
Contact Type: Normally Closed AC Voltage: 125V 15A; 250V 10A
DC Voltage: 16V 20A Contact Life: 10000 Cycles (AC-125V 15A, AC-250V 10A); 100000 Cycles (AC-125V 5A)
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10-45°C
Working Times: Over 10000 Trip Temperature Code: 018-043 (55-180°C)
Terminal Direction: Same/Opposite
Highlight:

17amh snap-action thermostat switch

,

17amh thermal cutout temperature switch

,

17AM thermal protector with warranty

17AMH Snap-Action Thermostat - Thermal Cutout Temperature Switch
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector
Compatible replacement for KLIXON 17AM thermal protector
Product Overview
The 17AMH is an excess-current thermal protector featuring compact design with quick and accurate action. Available with various lead configurations to meet specific customer requirements.
Technical Specifications
  • Electrical Ratings: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 operations
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z

17AMH: Product series identifier
XXX: Trip temperature in °C code
A/B: Terminal orientation (A: same direction, B: opposite direction)
5: OFF temperature tolerance code
A,B,C,D...Z: Connecting wire type specification
Temperature Code Reference
Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Product Diagrams
17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 0 17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 1
Applications
The 17AM thermal protector is designed for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and household appliances.
17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 2 17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 3 17amh Snap-Action Thermostat 17amh Thermal Cutout Temperature Switch 4
